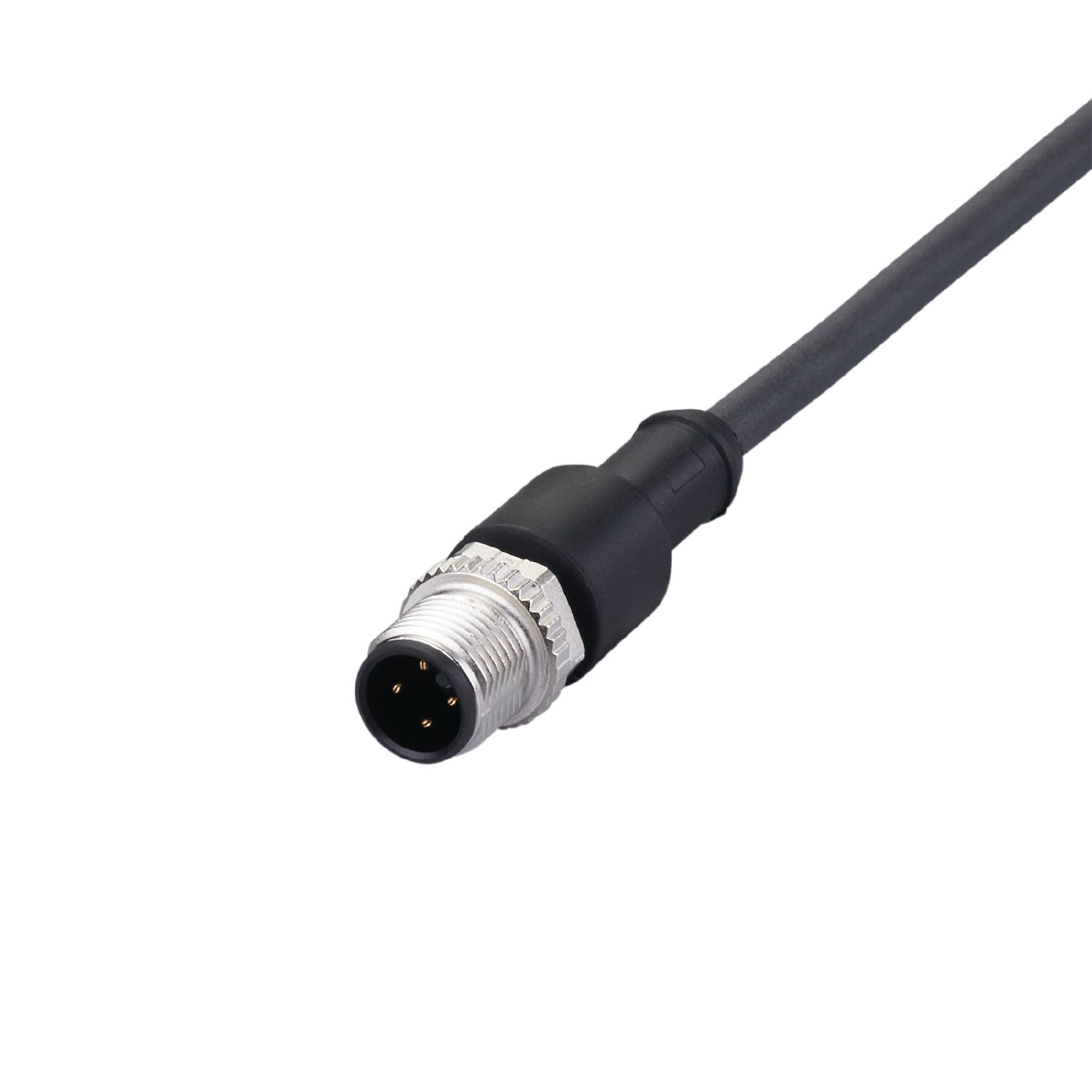

IFM E12333 - Connecting cable with plug ASTGH040MSS0010C04

High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Permanent, reliable sealing even when mounted without tools.
Gold-plated contacts for reliable electrical connections

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 68

Weight [g]	386.2
Dimensions [mm]	14.5 x 14.5 x 48.4
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, Halogen-free, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen not connected
