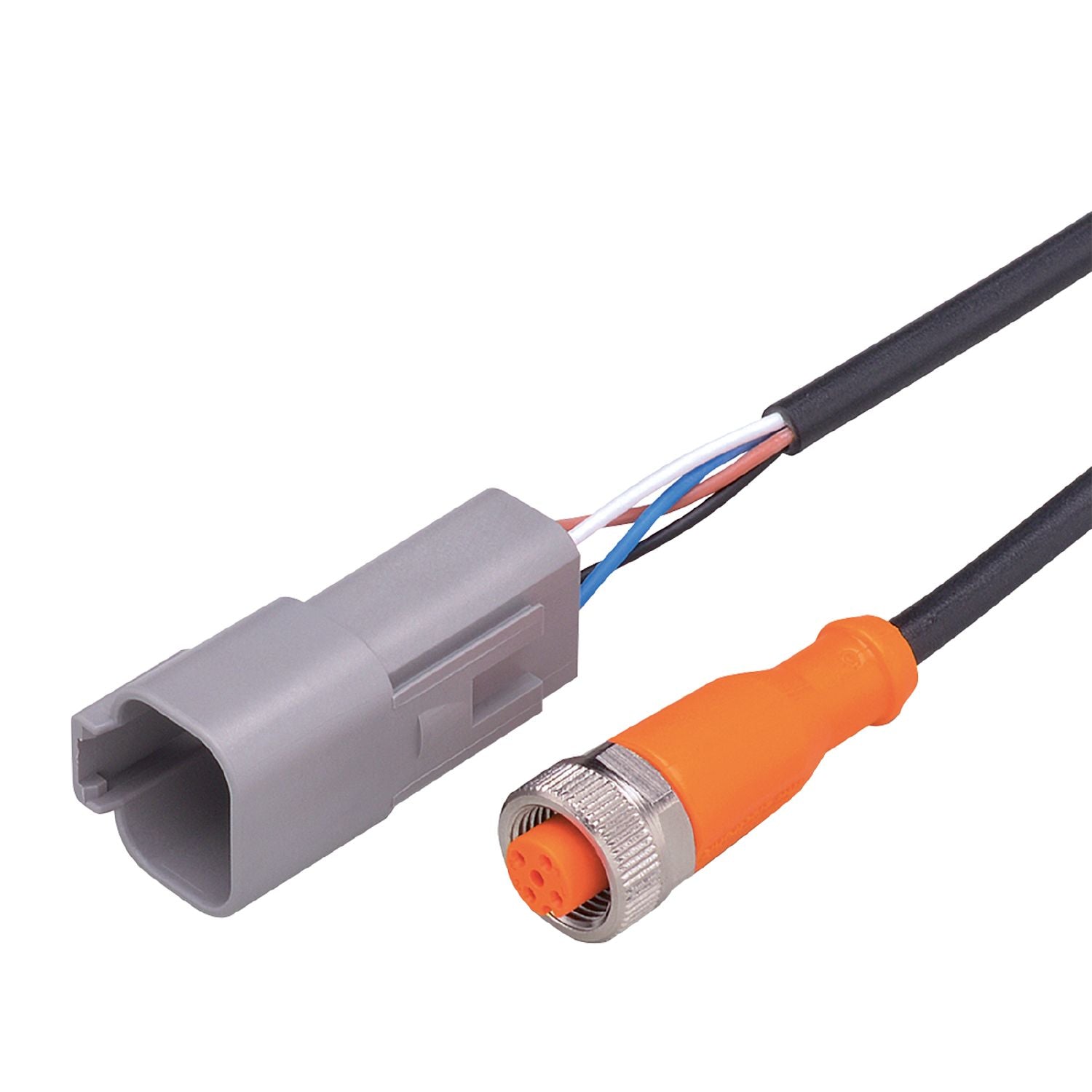

High protection rating for the requirements of harsh industrial environments. Wide operating temperature range. Good electromagnetic compatibility thanks to shielded cable. Gold-plated contacts for reliable electrical connections. DEUTSCH connector for the fast and easy connection to the on-board system
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone
yes
Operating voltage [V]
10...36 DC
Protection class
II
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-25...90
Protection
IP 67
Weight [g]
179.5
Materials
socket housing: TPU orange; Sealing: FKM
Material nut
brass, nickel-plated
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection - plug
Connector: 1 x DEUTSCH connector, straight; Contacts: nickel-plated
Electrical connection
Connection
Cable: 4 m, PUR, Halogen-free, black, Ø 5.1 mm; 4 x 0.50 mm² (64 x Ø 0.1 mm )
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12336-00 — 05.11.2020 —
