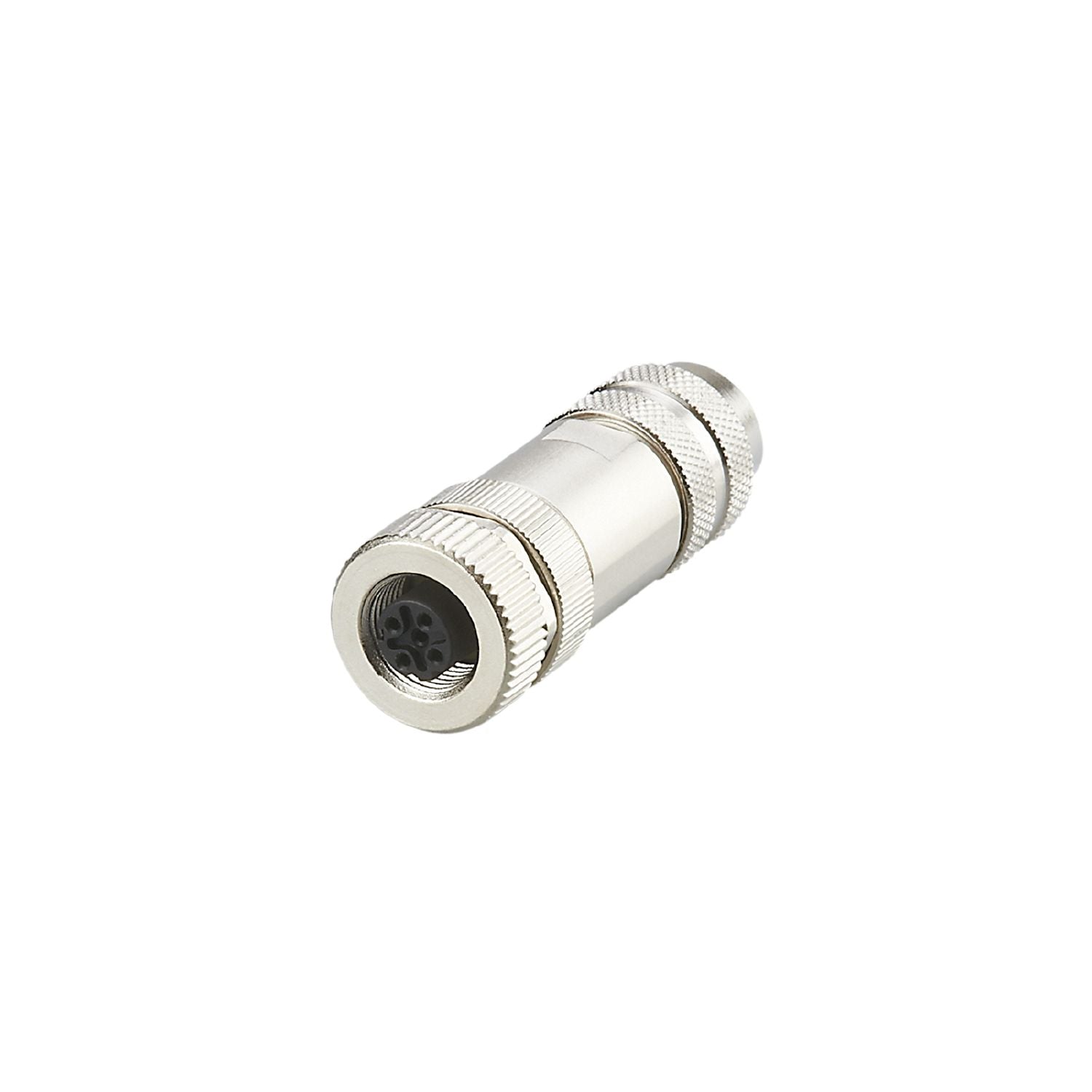

IFM E12354 - Wirable socket SDOGH040MSSFKSG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals.
Good electromagnetic compatibility thanks to placeable cable shield

Special feature	Free from silicone; Gold-plated contacts
Design	Ethernet cable, D-coded
Free from silicone	yes

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	46.7
Dimensions [mm]	20 x 20 x 58
Materials	diecast zinc nickel-plated
Moulded-body material	diecast zinc, nickel-plated
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: D; Moulded body: diecast zinc, nickel-plated; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: shieldable
