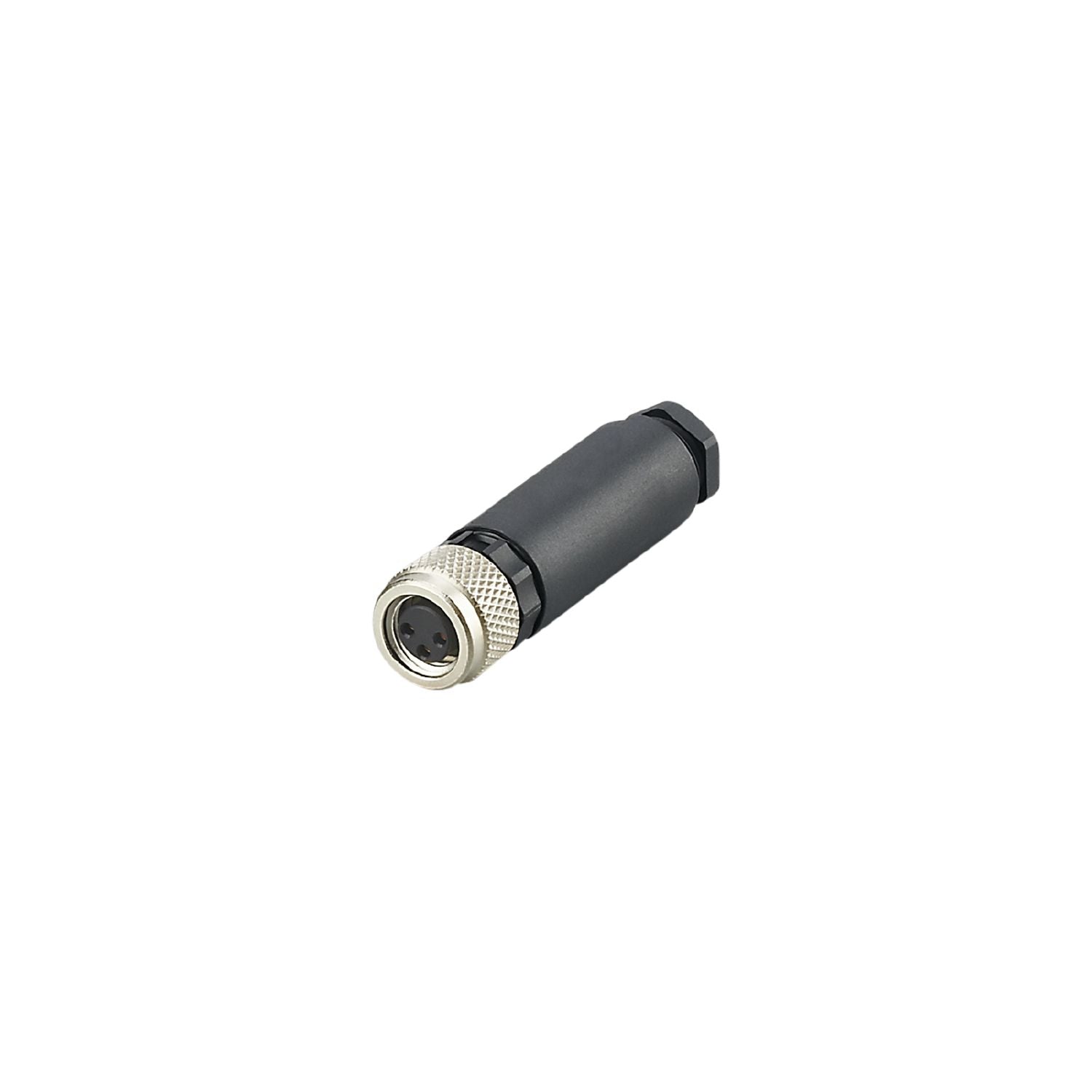

IFM E12357 - Wirable socket SDOGF030MSSFKSG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Gold-plated contacts

Operating voltage [V]	< 30 AC/DC

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	8.733
Dimensions [mm]	12 x 12 x 45
Materials	PBT; PA
Moulded-body material	PBT / PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.14...0.5 mm²; Cable sheath: Ø 3.5...5 mm

Electrical connection - socket

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: PBT / PA; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12357-01 — 22.10.2015 —
