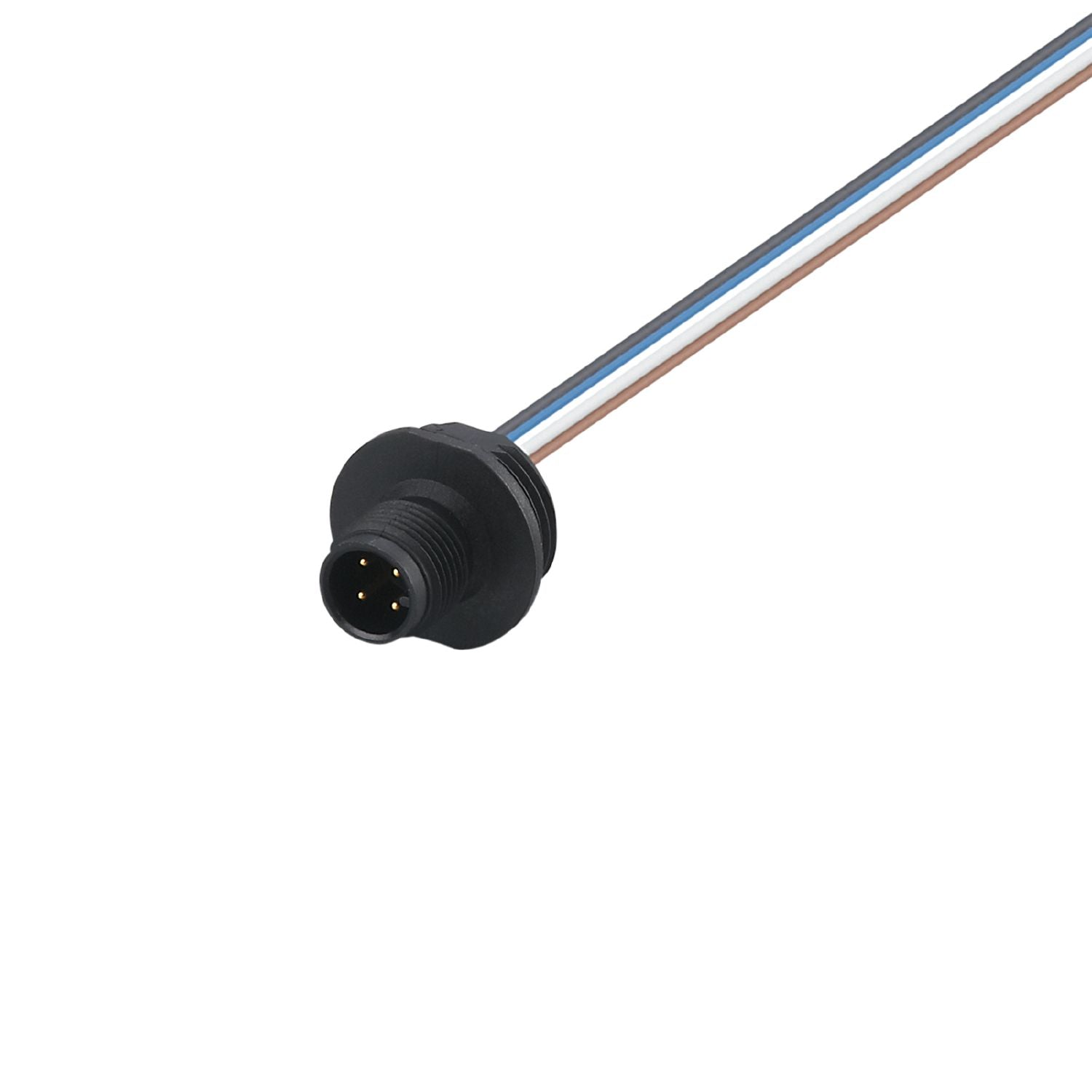

IFM E12358 - Adapter plug ESTGH040PLS00,5E04 (PG11)

User-friendly equipment of distributors and housings with connections for connectors.
Easy and quick installation into the container wall.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	9.66
Mounting thread	PG 11
Materials	PA 6.6
Moulded-body material	PA 6.6

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 4 x 0.25 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12358-00 — 02.04.2013 —
