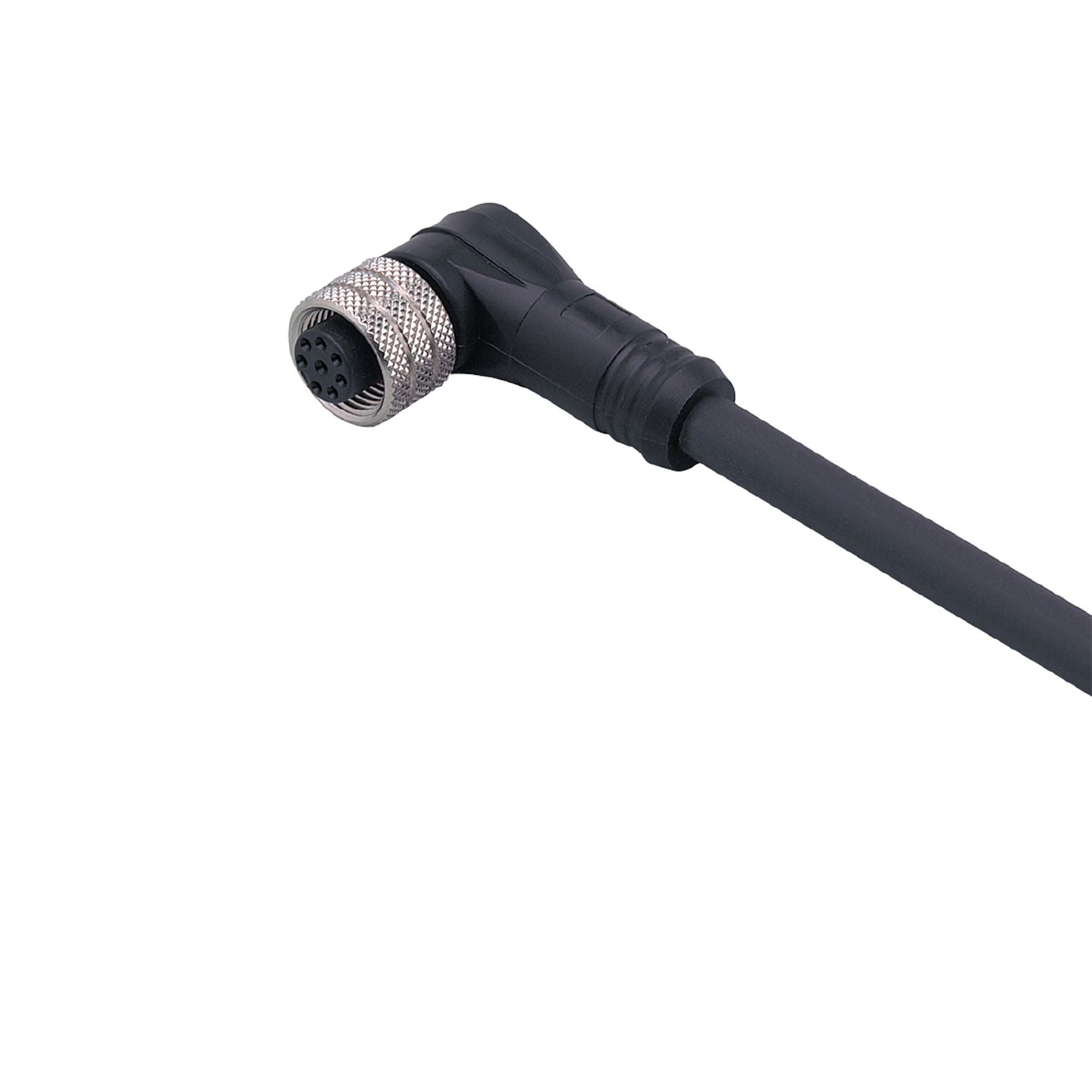

IFM E12362 - Connecting cable with socket ADOAH080MSS0001H08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Gold-plated contacts for reliable electrical connections.
Wide operating temperature range.
Angled type for use where space is restricted

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III
Max. current load total [A]	2;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	78.8
Dimensions [mm]	28 x 15 x 38
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 1 m, PUR, black, Ø 6.8 mm; 8 x 0.25 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
