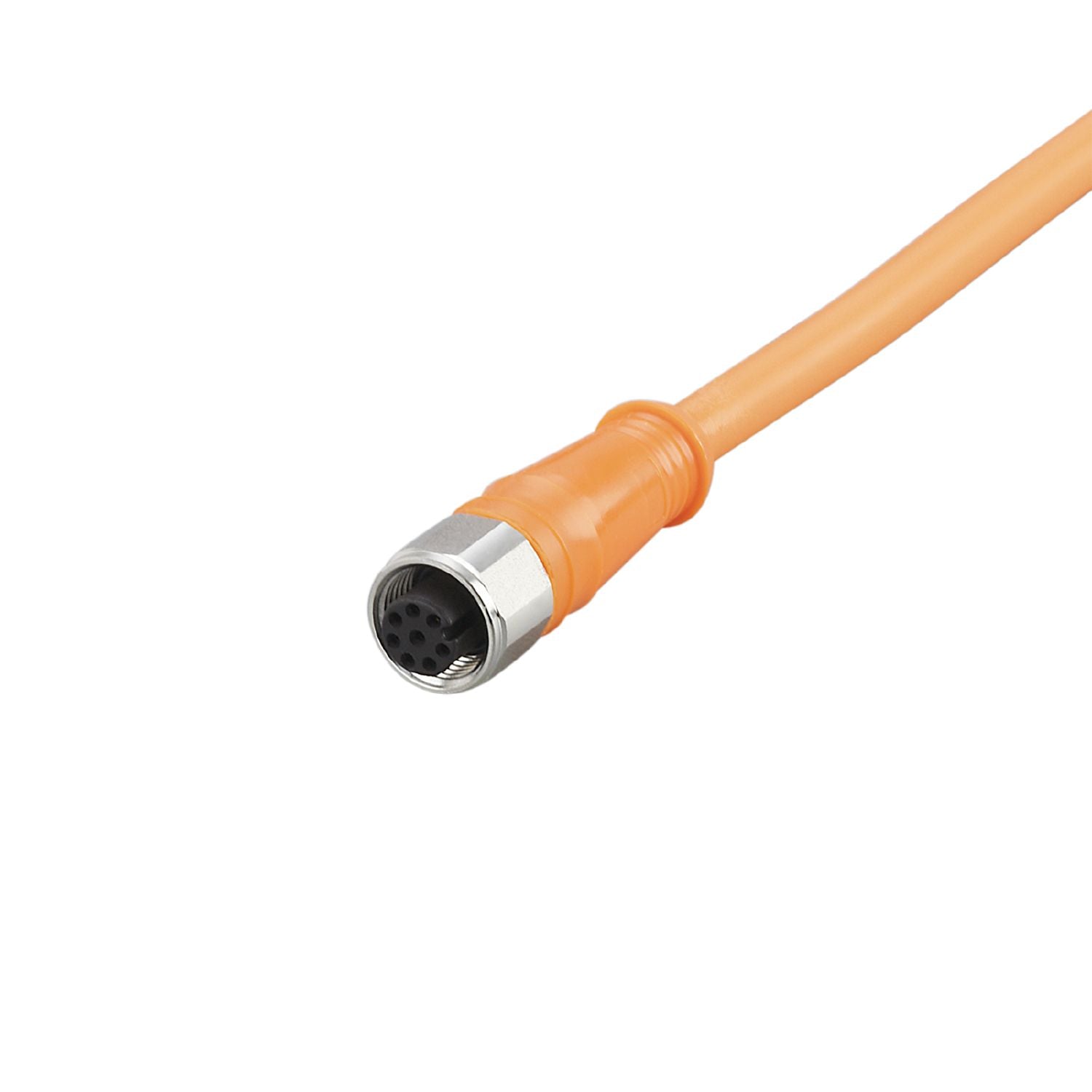

IFM E12400 - Connecting cable with socket ADOGH080VAS0015E08

8-pole connection.
High protection rating for the requirements of the food and beverage industry.
Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
Wide operating temperature range

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 68; IP 69K

Weight [g]	929
Dimensions [mm]	15 x 15 x 46
Materials	PVC
Moulded-body material	PVC
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

	Cable: 15 m, PVC, orange, Ø 5.9 mm; 8 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PVC; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12400-00 — 26.08.2014 —
