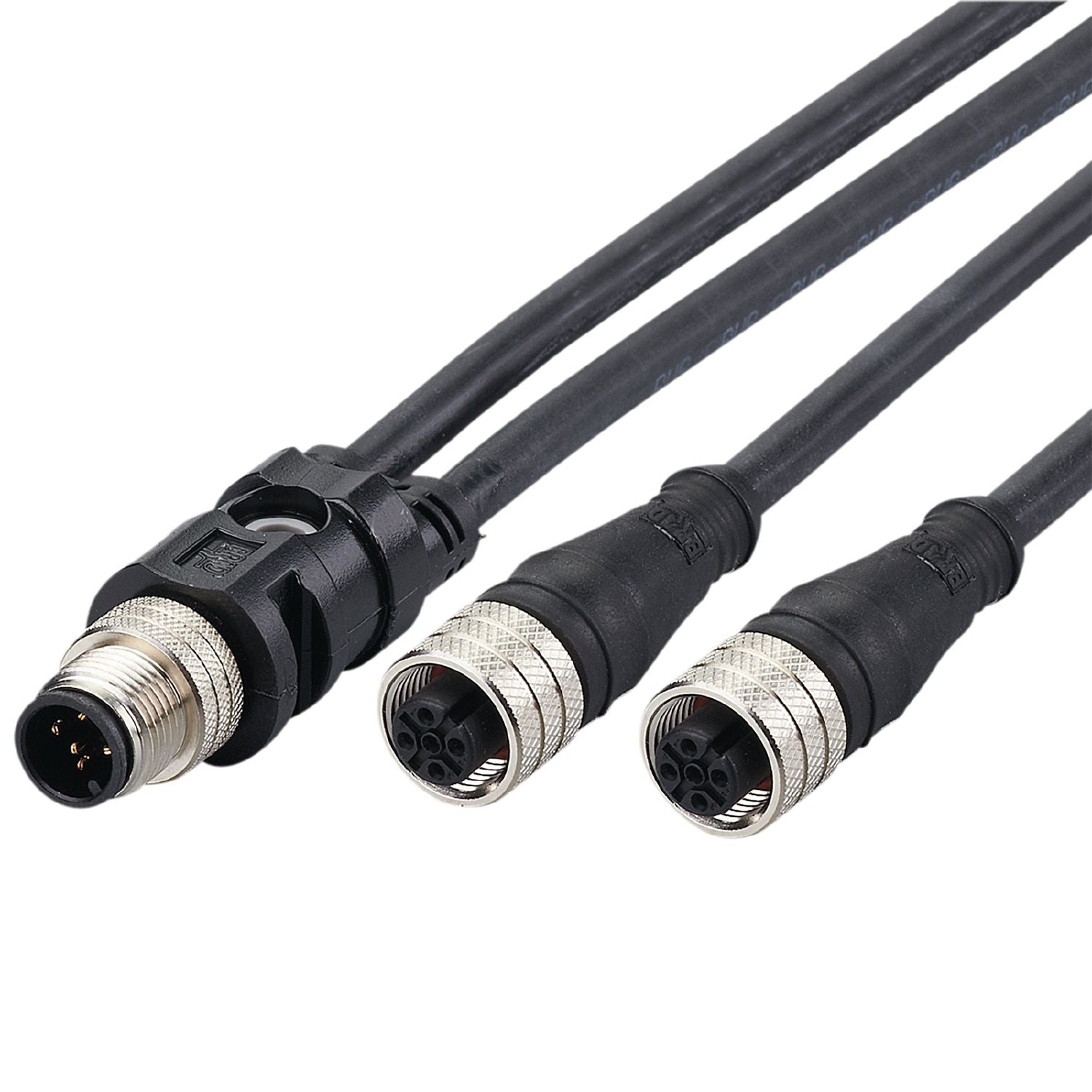

IFM E12405 - Y connection cable YDOGH050MSS0,25H04STGH050MSS

For safe electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	10...30 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	65
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated
Number of ports splitter box	2

Pack quantity	1 pcs.

Electrical connection -plug

Connection	Cable: 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm )
Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated
