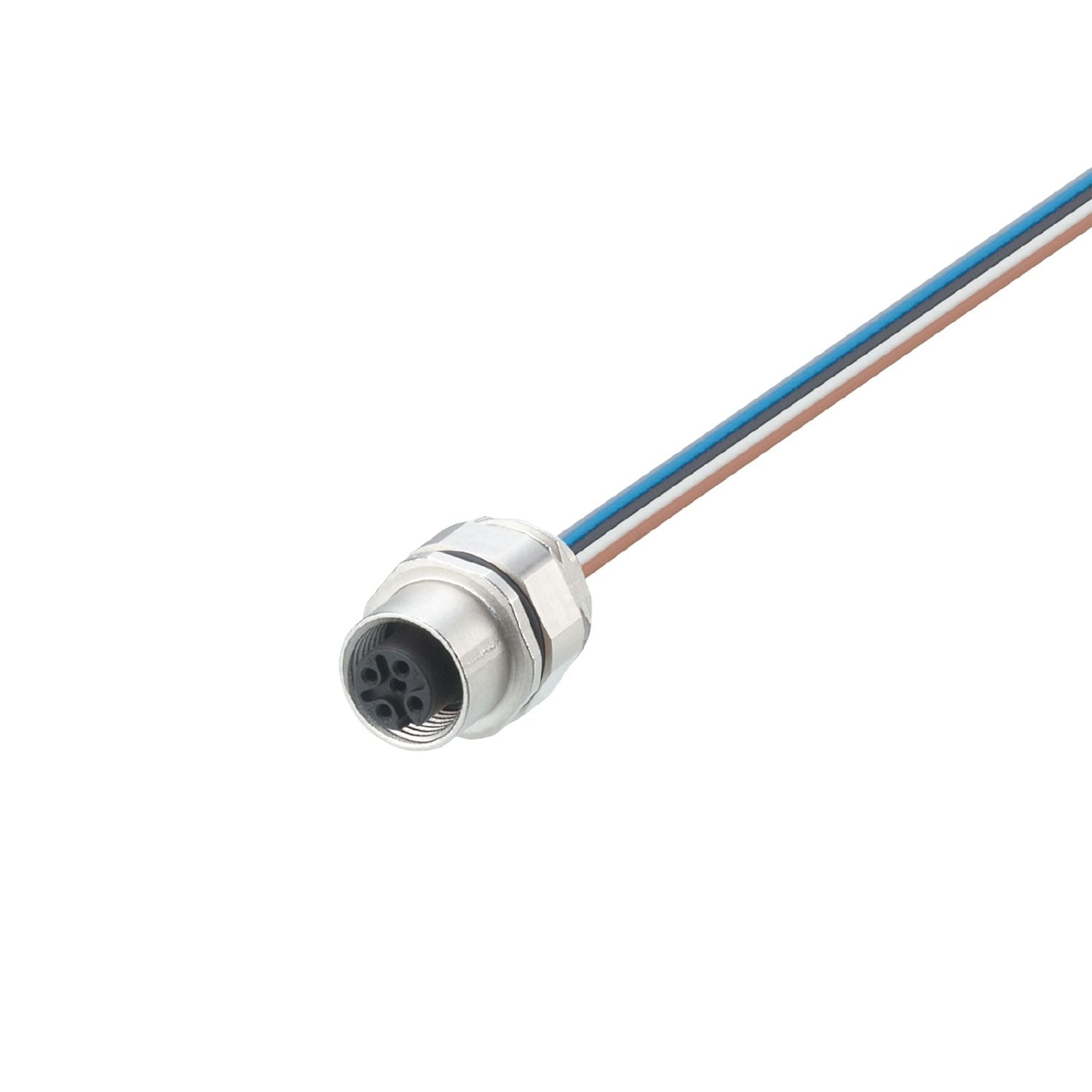

IFM E12408 - Adapter socket EDOGH050MSS00,5E05 (M16)

User-friendly equipment of distributors and housings with connections for connectors.
Easy and quick installation into the container wall.
Robust metal version.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 125 AC/DC

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	23.6
Mounting thread	M16
Materials	diecast zinc nickel-plated
Moulded-body material	diecast zinc, nickel-plated

Accessories

Items supplied	nut: 1 x M16 x 1,5

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 5 x 0.25 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: diecast zinc, nickel-plated
