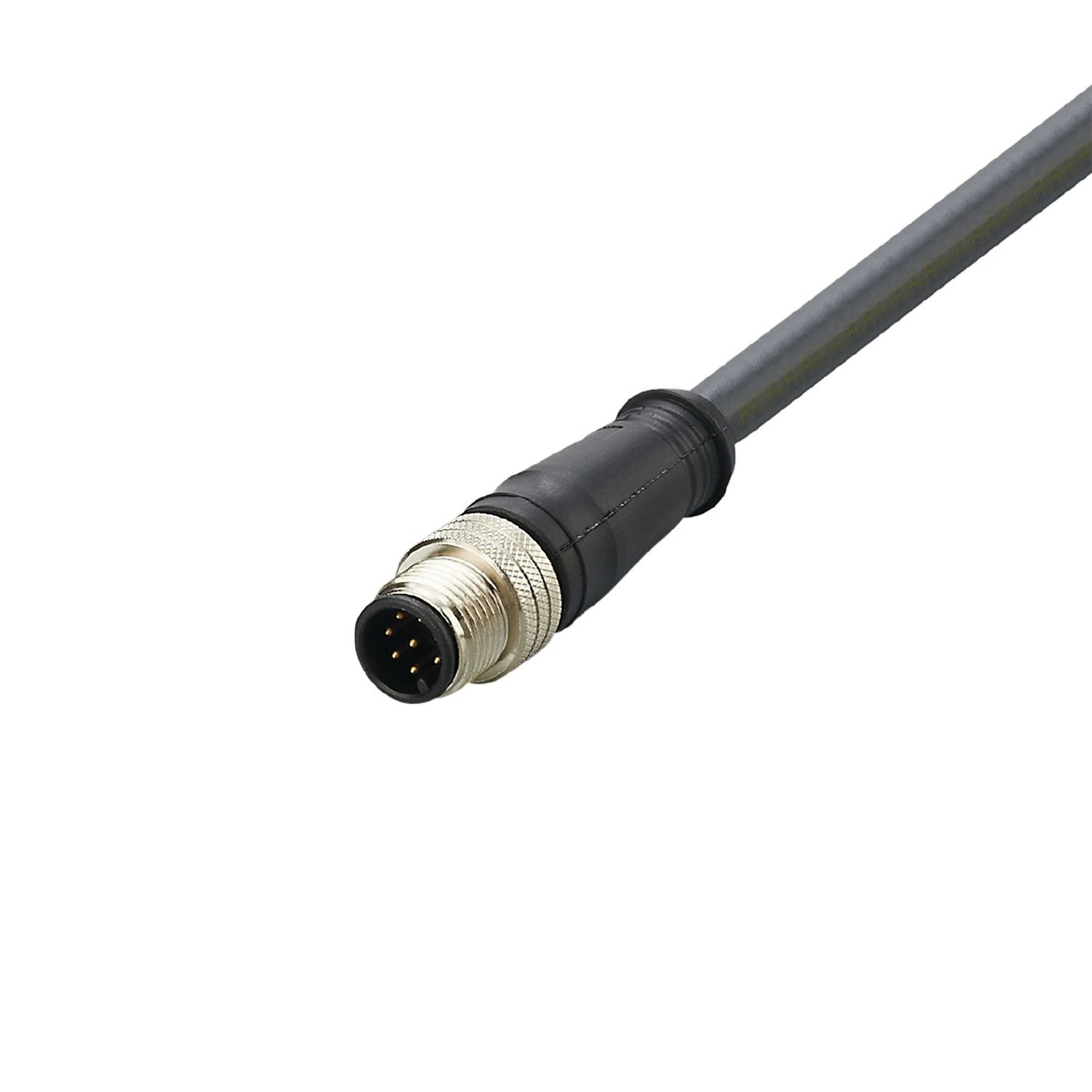

IFM E12436 - Connecting cable with plug ASTGH080MSS0002H08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	133
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, black, Ø 6.8 mm; 8 x 0.25 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12436-00 — 13.04.2015 —
