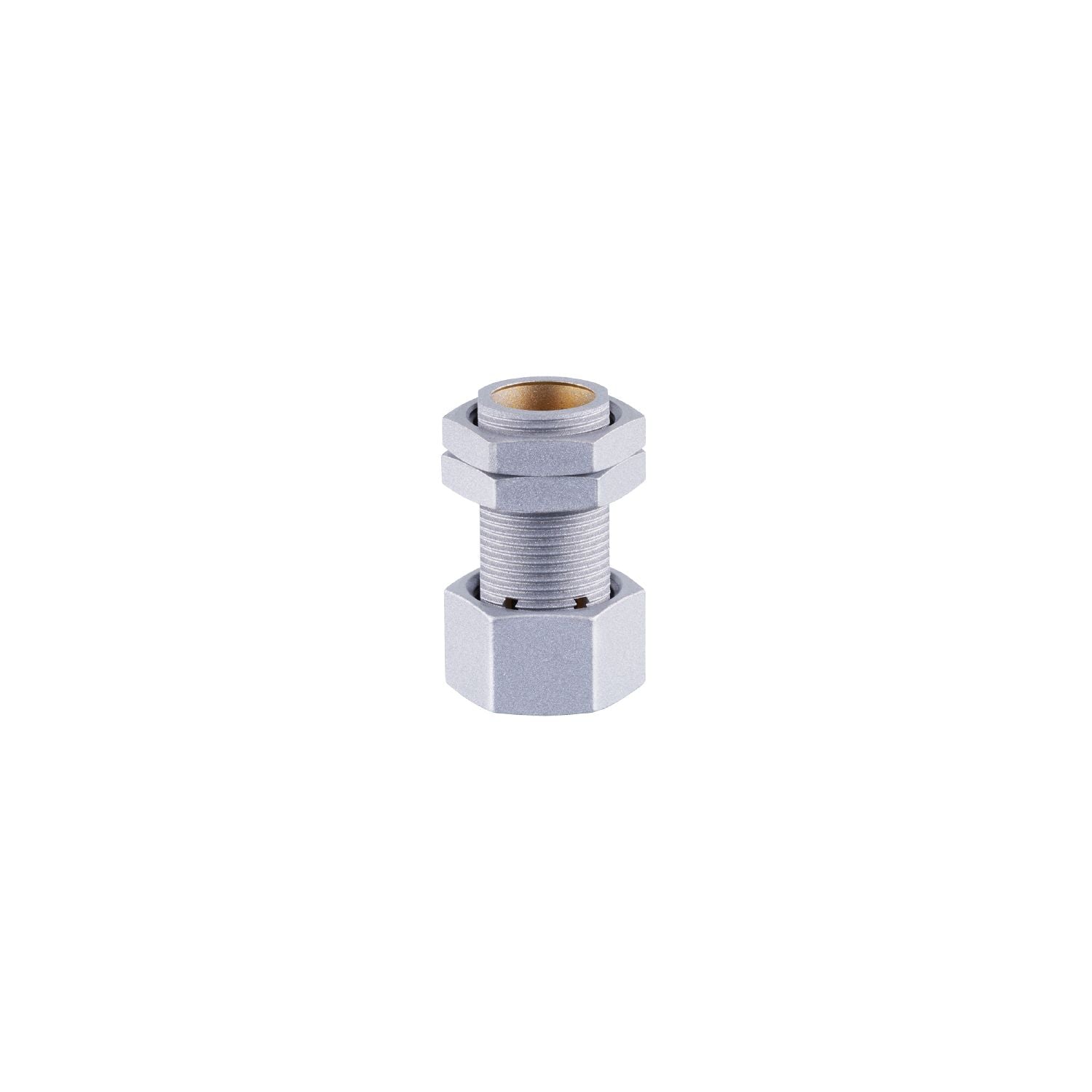

IFM E12452 - Mounting sleeve with end stop FIXING/M12/NT/K1/COATED/END STOP

End stop for defined installation position.
For mounting cylindrical sensors.
Easy and quick replacement without readjustment.
Reliable protection against damage.
Resistant to weld slag thanks to non-stick coating

Special feature	anti-spatter
Design	with end stop

Weight [g]	34.9
Installation instruction	align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range)
Dimensions [mm]	M16 x 1
Thread designation	M16 x 1
Inside diameter [mm]	12
Materials	brass anti-spatter; Nuts: brass anti-spatter
Tightening torque [Nm]	3;(lock nuts: 10)

Accessories

Items supplied	Nuts: 2

Pack quantity	1 pcs.

Diagrams and graphs

Installation

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12452-00 — 17.03.2023 —
