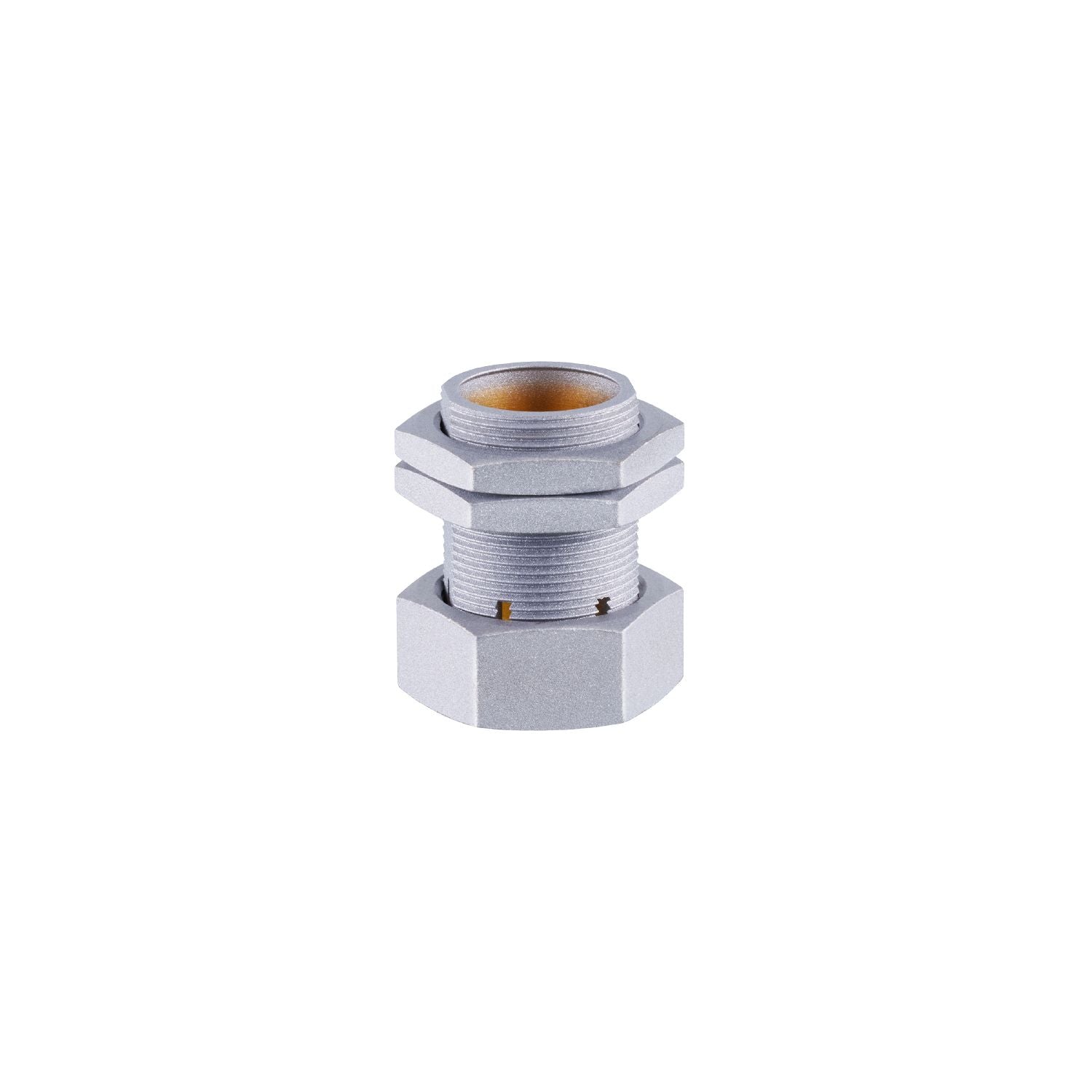

IFM E12453 - Mounting sleeve with end stop FIXING/M18/NT/K1/COATED/END STOP

End stop for defined installation position.
For mounting cylindrical sensors.
Easy and quick replacement without readjustment.
Reliable protection against damage.
Resistant to weld slag thanks to non-stick coating

Special feature	anti-spatter
Design	with end stop

Weight [g]	55.3
Installation instruction	align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range)
Dimensions [mm]	M22 x 1
Thread designation	M22 x 1
Inside diameter [mm]	18
Materials	brass anti-spatter; Nuts: brass anti-spatter
Tightening torque [Nm]	5;(lock nuts: 10)

Accessories

Items supplied	Nuts: 2

Pack quantity	1 pcs.

Diagrams and graphs

Installation
