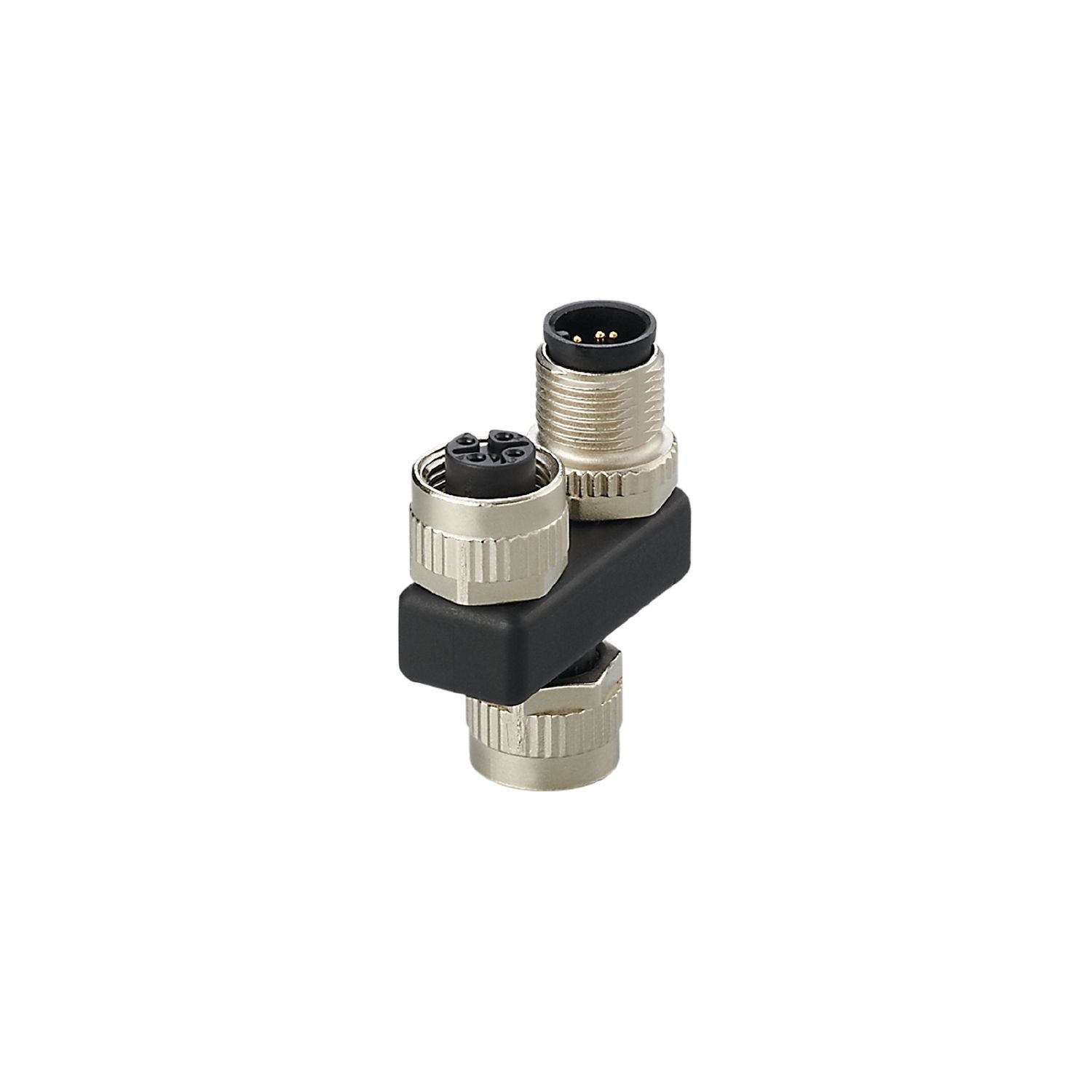

IFM E12481 - Y-splitter ZDO2H050MSS0000-00STGH050MSS

For use in applications with many inputs and outputs where space is restricted.
High protection rating for the requirements of harsh industrial environments.
Gold-plated contacts for reliable electrical connections.
Wide operating temperature range

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 DC
Max. current load per module/slot [A]	4
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	23.9
Materials	PUR
Moulded-body material	PUR
Material nut	diecast zinc
Connector type	M12

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated

Electrical connection - socket

	Connector: 2 x M12; coding: A; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated
