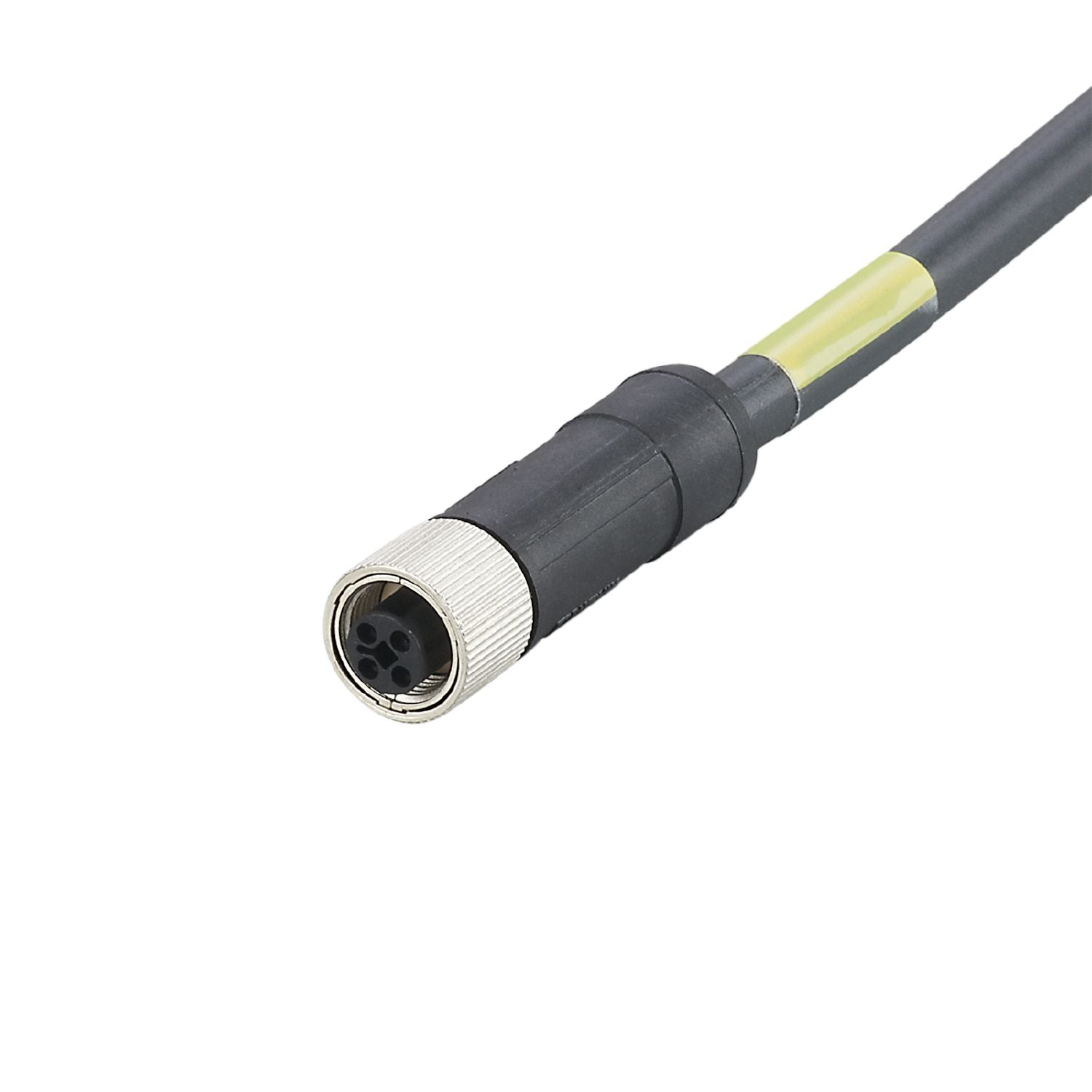

IFM E12498 - Connecting cable with socket ADOGD040ZDS0050H04

Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
High power transmission thanks to high current rating

Special feature	Gold-plated contacts
Design	power cable, T-coded

Operating voltage [V]	< 60 DC
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	5233.5
Dimensions [mm]	15.4 x 15.4 x 52.8
Materials	PP
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 50 m, PUR, black, Ø 8 mm; 4 x 1.5 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: T; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12498-01 — 15.02.2022 —
