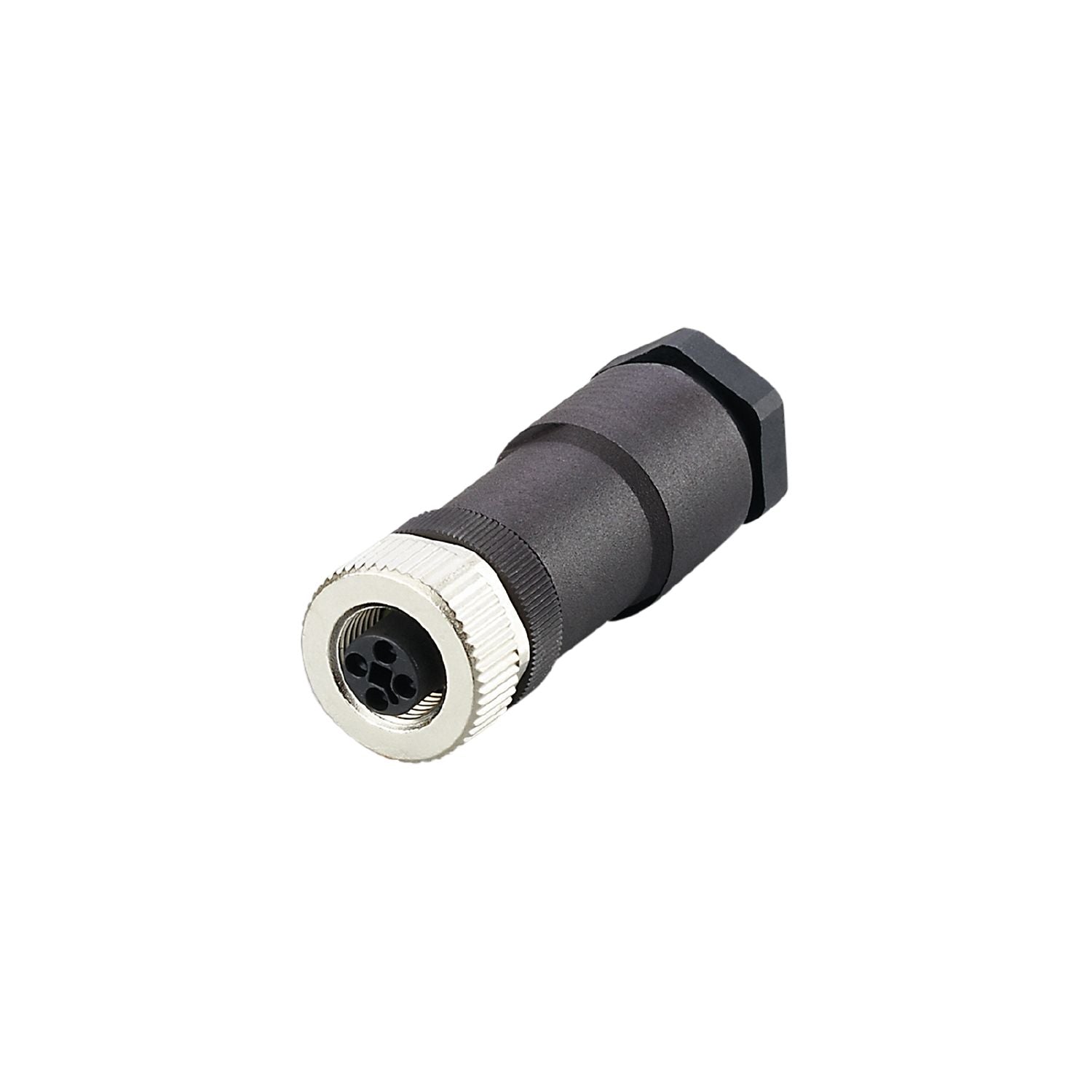

IFM E12499 - Wirable socket SDOGD040ZDSFKP

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Design	power cable, T-coded
Free from silicone	yes

Operating voltage [V]	< 60 DC
Max. current load total [A]	12;(when using conductors with 1.5 mm²)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	29
Moulded-body material	PA
Material nut	diecast zinc
Sealing material	NBR

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.75...1.5 mm²; Cable sheath: Ø 8...10 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: T; Moulded body: PA; Locking: diecast zinc; Sealing: NBR; Contacts: gold-plated; Tightening torque: 0.4 Nm
