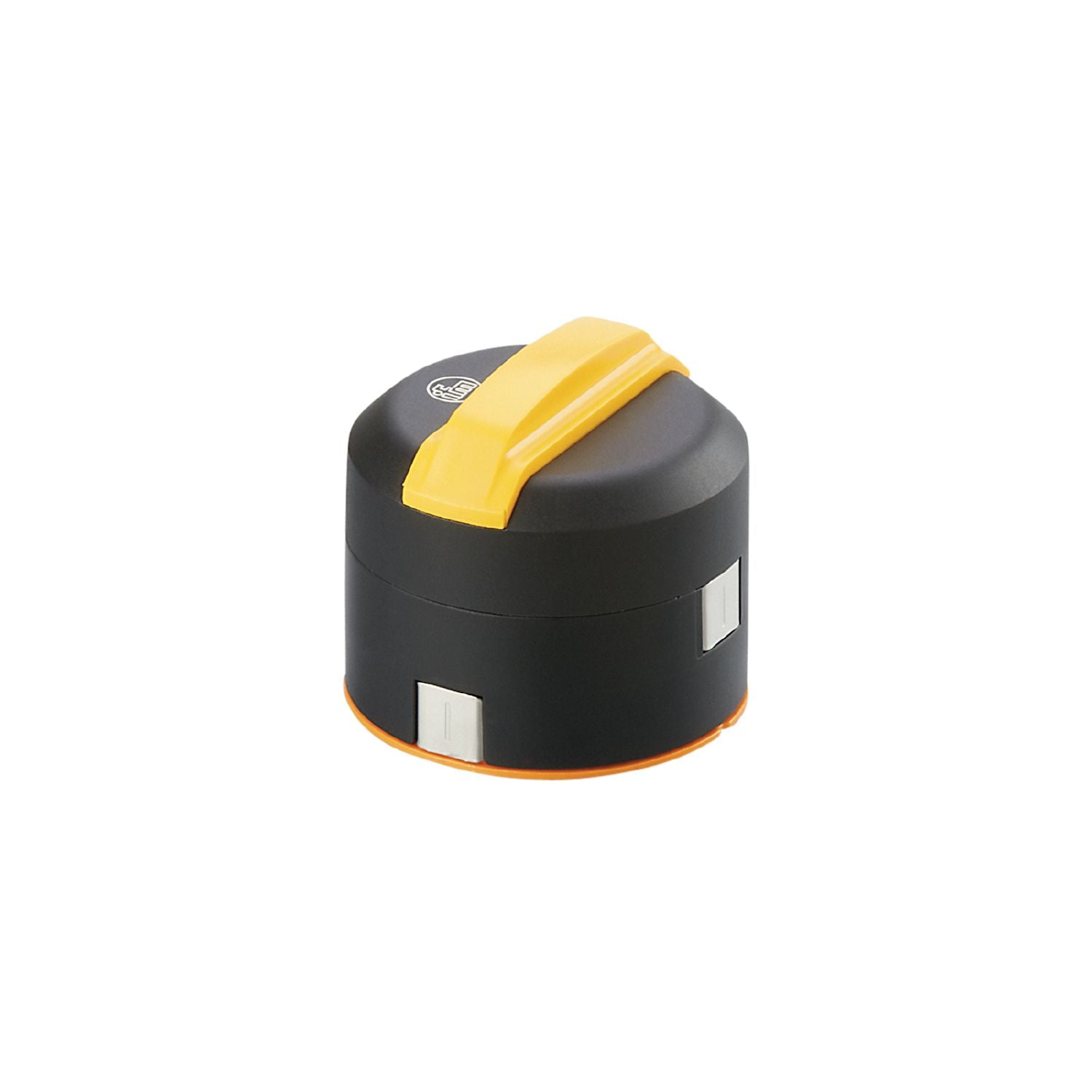

IFM E12517 - Target puck for valve actuators PUCK 53MM BASIC

For monitoring valve positions.
For reliable position feedback on valve actuators.
Easy mounting directly on the shaft of the drive.
Non-contact and self-cleaning system.
Ring with damping elements can be rotated by 90°

Design	for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337

Weight [g]	60.5
Target puck diameter [mm]	53
Hole spacing [mm]	80
Shaft height of valve drive [mm]	30
Materials	target puck: PA 6 black; metal parts: stainless steel
Tightening torque [Nm]	2.5...3

Accessories

Items supplied	half-round head screw: 1 x M6 x 16, stainless steel

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12517-01 — 05.11.2019 —
