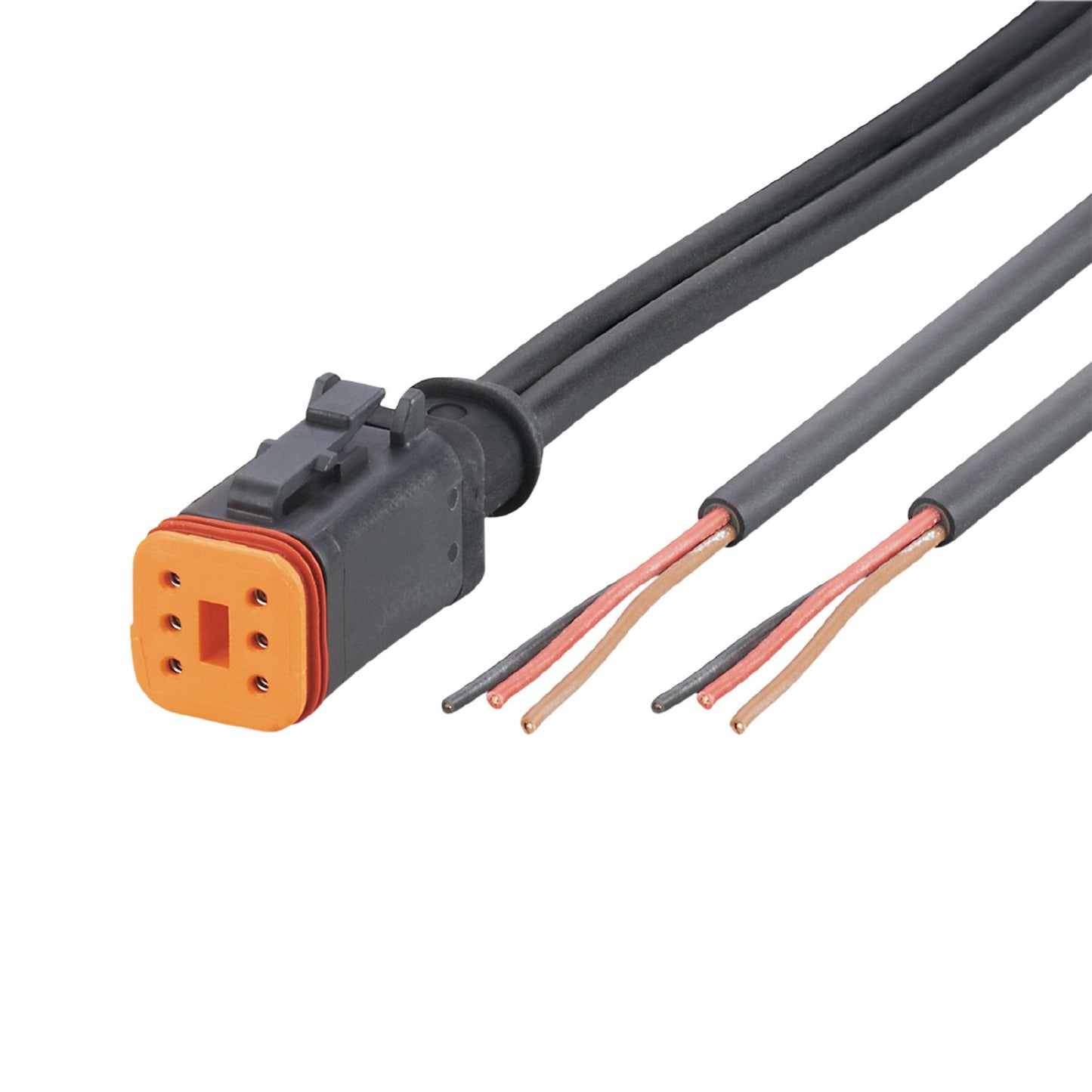

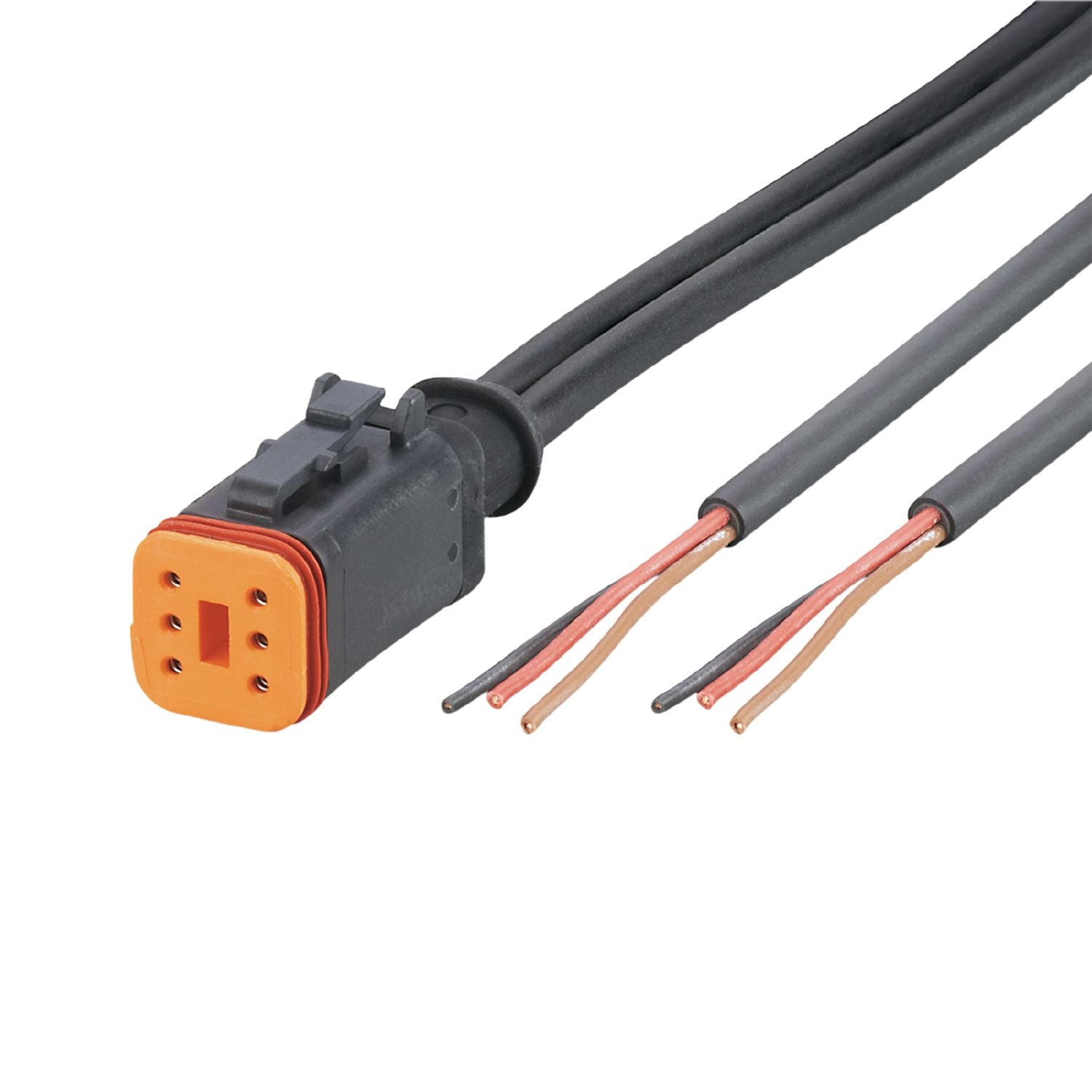

IFM E12547 - Y connection cable YDOGS030PLS0002H03

For use in mobile machines and vehicles.
Wide operating temperature range.
DEUTSCH connector for the fast and easy connection to the on-board system.
High protection rating for the requirements of harsh industrial environments.
PUR cable with good drag chain suitability

Special feature	Free from silicone; Halogen-free; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	8...32 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...85
Ambient temperature (moving) [°C]	-20...85
Protection	IP 67;(mating connector plugged in)

Weight [g]	132.83
Dimensions [mm]	24 x 24 x 54
Materials	PA
Number of ports splitter box	2
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - 1-2-3

	Cable: 2 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )

Electrical connection - 4-5-6

	Cable: 2 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x DEUTSCH connector, straight; Contacts: nickel-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12547-00 — 05.11.2020 —
