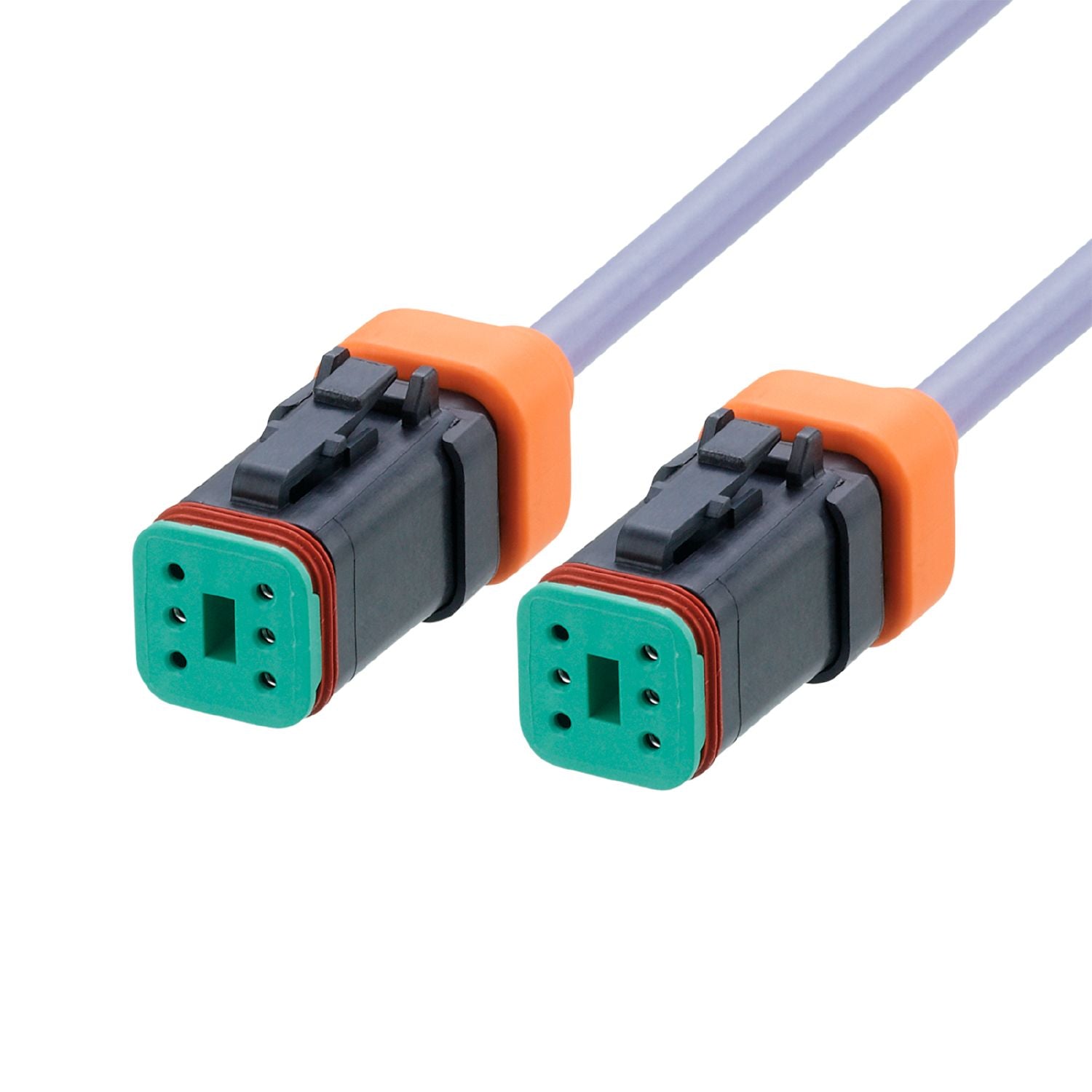

IFM E12555 - Connection cable VDOGS040PLS00,5H04DOGS040PLS

For use in mobile machines and vehicles.
Wide operating temperature range.
DEUTSCH connector for the fast and easy connection to the on-board system.
High protection rating for the requirements of harsh industrial environments.
PUR cable with good drag chain suitability

Special feature	Free from silicone; Halogen-free
Free from silicone	yes

Operating voltage [V]	12...24 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...85
Ambient temperature (moving) [°C]	-30...70
Protection	IP 67;(mating connector plugged in)

Weight [g]	81.9
Moulded-body material	PA

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PUR, Halogen-free, lilac, Ø 6.4 mm; twisted; 2 x 0.50 mm² (2 x0.50mm ) + 2 x 1 mm² (52x0.15 mm )

Electrical connection - socket

Connection	Connector: 2 x DEUTSCH connector, straight; Moulded body: PA; Contacts: nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12555-00 — 05.11.2020 —
