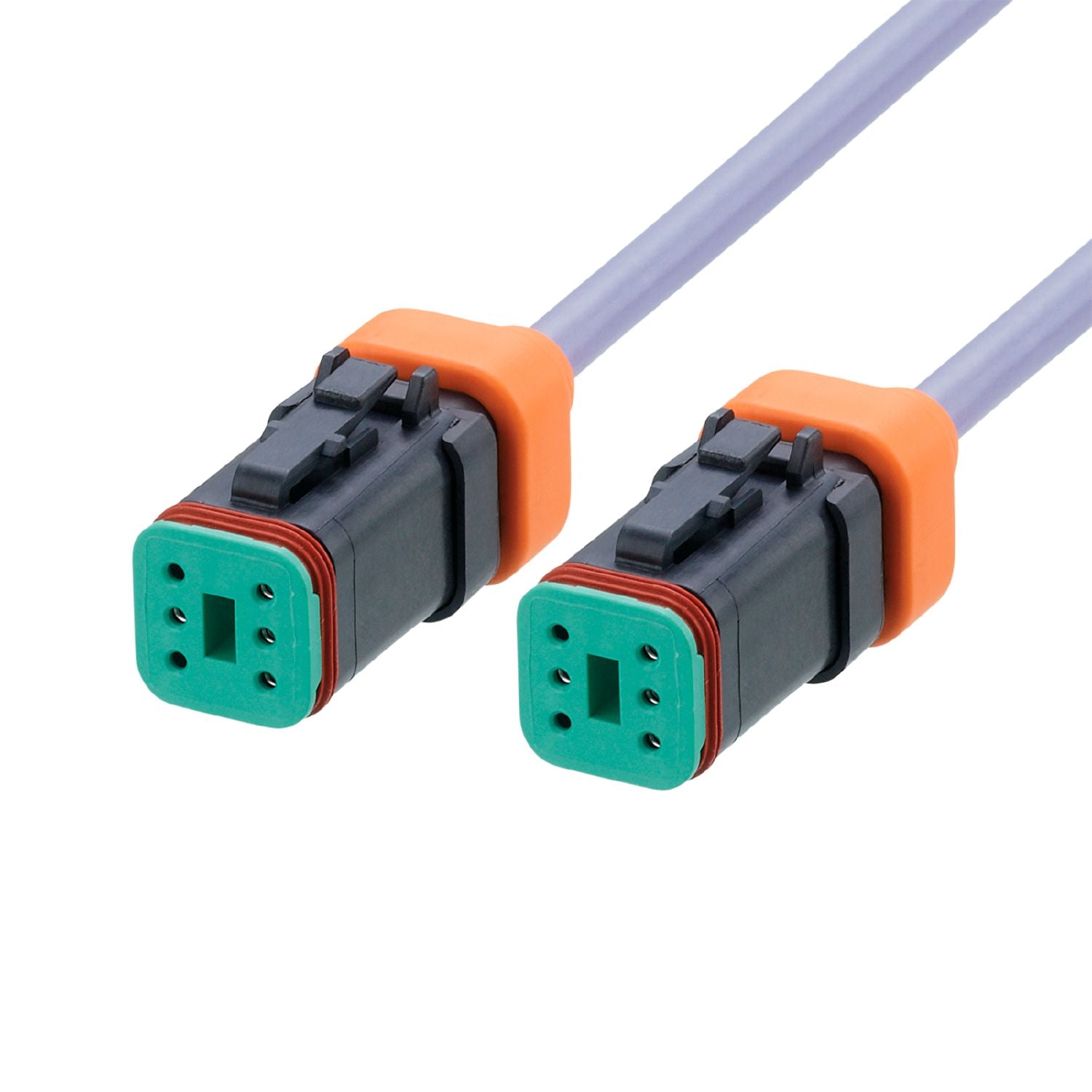

IFM E12556 - Connection cable VDOGS040PLS0001H04DOGS040PLS

For use in mobile machines and vehicles.
Wide operating temperature range.
DEUTSCH connector for the fast and easy connection to the on-board system.
High protection rating for the requirements of harsh industrial environments.
PUR cable with good drag chain suitability

Special feature	Free from silicone; Halogen-free
Free from silicone	yes

Operating voltage [V]	12...24 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...85
Ambient temperature (moving) [°C]	-30...70
Protection	IP 67;(mating connector plugged in)

Weight [g]	119
Moulded-body material	PA

Pack quantity	1 pcs.

Electrical connection

	Cable: 1 m, PUR, Halogen-free, lilac, Ø 6.4 mm; twisted; 2 x 0.50 mm² (28 x0.15 mm ) + 2 x 1 mm² (52x0.15 mm )

Electrical connection - socket

Connection	Connector: 2 x DEUTSCH connector, straight; Moulded body: PA; Contacts: nickel-plated
