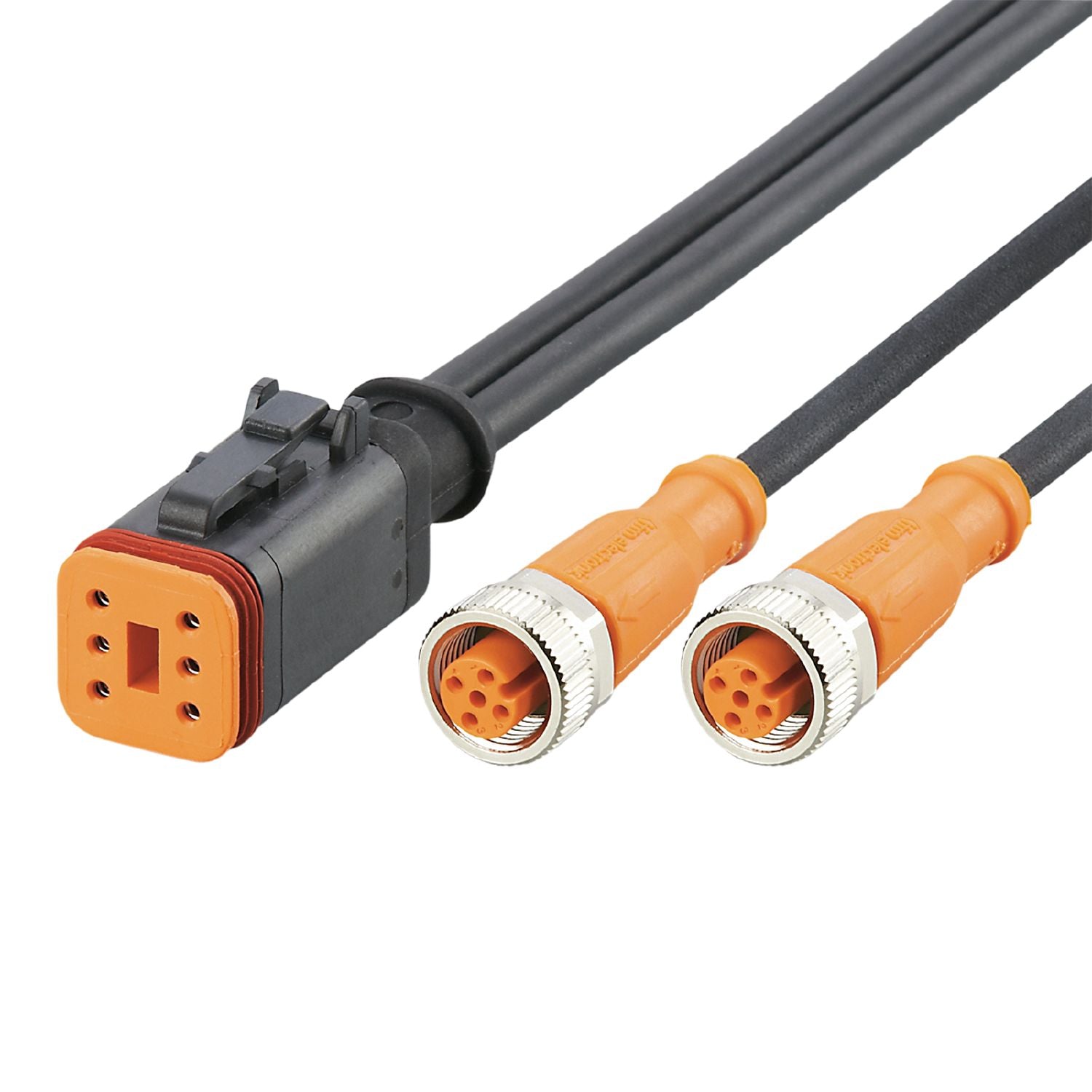

For use in mobile machines and vehicles. Wide operating temperature range. DEUTSCH connector for the fast and easy connection to the on-board system. High protection rating for the requirements of harsh industrial environments. PUR cable with good drag chain suitability
Special feature
Free from silicone; Halogen-free; Drag chain suitability
Free from silicone
yes
Operating voltage [V]
8...32 DC
Protection class
III
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-40...80
Ambient temperature (moving) [°C]
-20...80
Protection
IP 67;(mating connector plugged in)
Weight [g]
135
Materials
PA; socket: TPU orange; Sealing: FKM
Material nut
brass, nickel-plated
Number of ports splitter box
2
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection -DEUTSCH connector
Connection
Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 6 x 0.5 mm² (28 x Ø 0.15 mm )
Connection
Connector: 1 x DEUTSCH connector, straight
Electrical connection -socket
Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.5 mm² (28 x Ø 0.15 mm )
