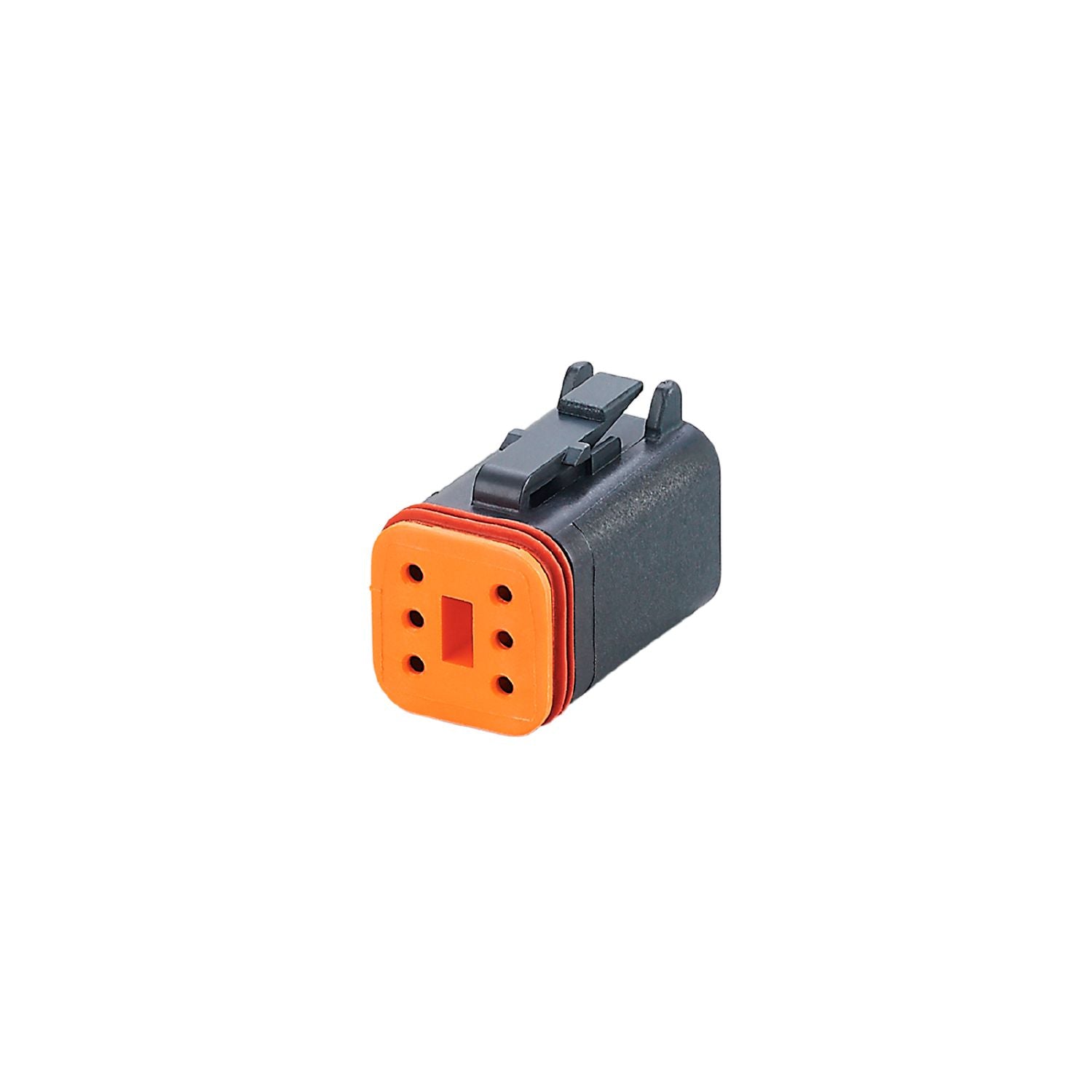

IFM E12583 - Wirable socket SDOGS060--AFKCR

For use in mobile machines and vehicles.
Wide operating temperature range.
DEUTSCH connector for the fast and easy connection to the on-board system.
High protection rating for the requirements of harsh industrial environments

Special feature	Free from silicone
Free from silicone	yes

Operating voltage [V]	8...32 DC
Protection class	III
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...80
Ambient temperature (moving) [°C]	-20...80
Protection	IP 67;(mating connector plugged in)

Weight [g]	15.1
Materials	brass nickel-plated; PA

Pack quantity	1 pcs.

Electrical connection

Connection	6 x 0.5 mm²
Connection	Connector: 1 x DEUTSCH connector (DT-06-6S-CE02)
