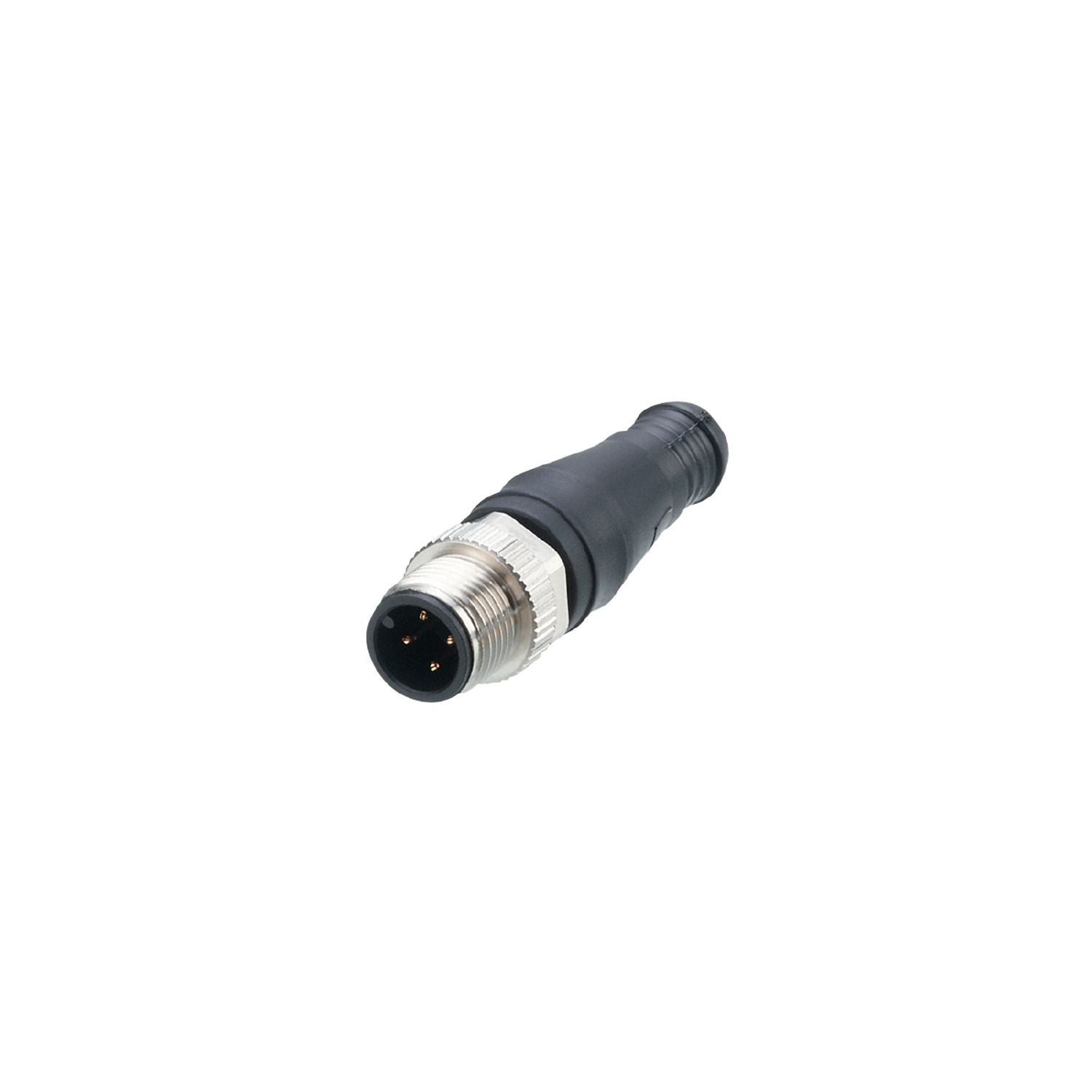

IFM E12639 - Connector SPLITTER CABLE END CAP 4p

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...85
Ambient temperature (moving) [°C]	> -15
Protection	IP 67

Weight [g]	16.4
Dimensions [mm]	Ø 14 / L = 50
Moulded-body material	TPU, Halogen-free
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

Connection	Connector:M12; coding: A; Moulded body: TPU, Halogen-free; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 1 Nm
