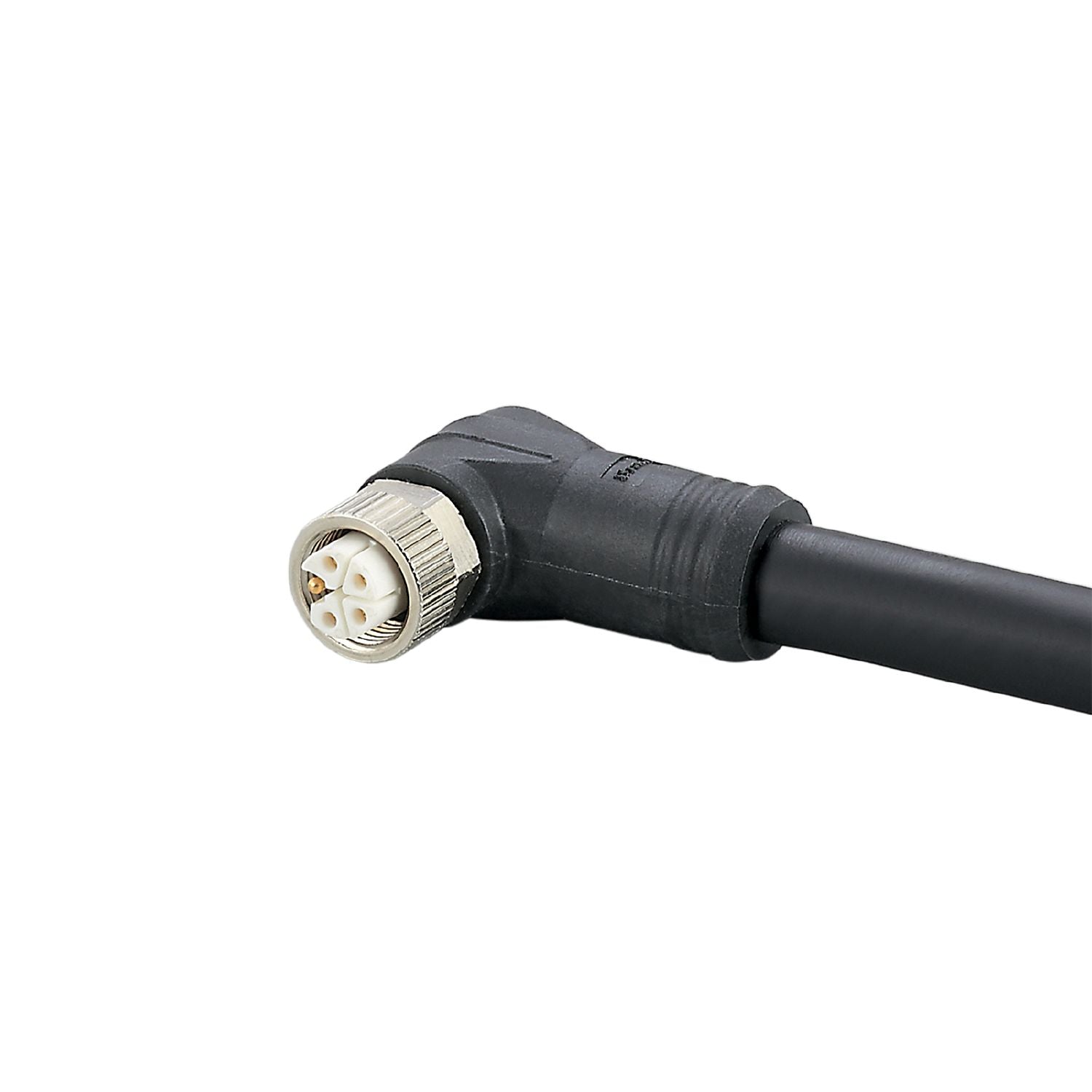

IFM E12646 - Connecting cable with socket ADOAX050MSS0002H05

Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
High power transmission thanks to high current rating

Special feature	Gold-plated contacts
Design	power cable, L-coded

Operating voltage [V]	63 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...90
Protection	IP 67

Weight [g]	464.9
Dimensions [mm]	39 x 16 x 38.1
Materials	PP
Moulded-body material	TPE
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated
