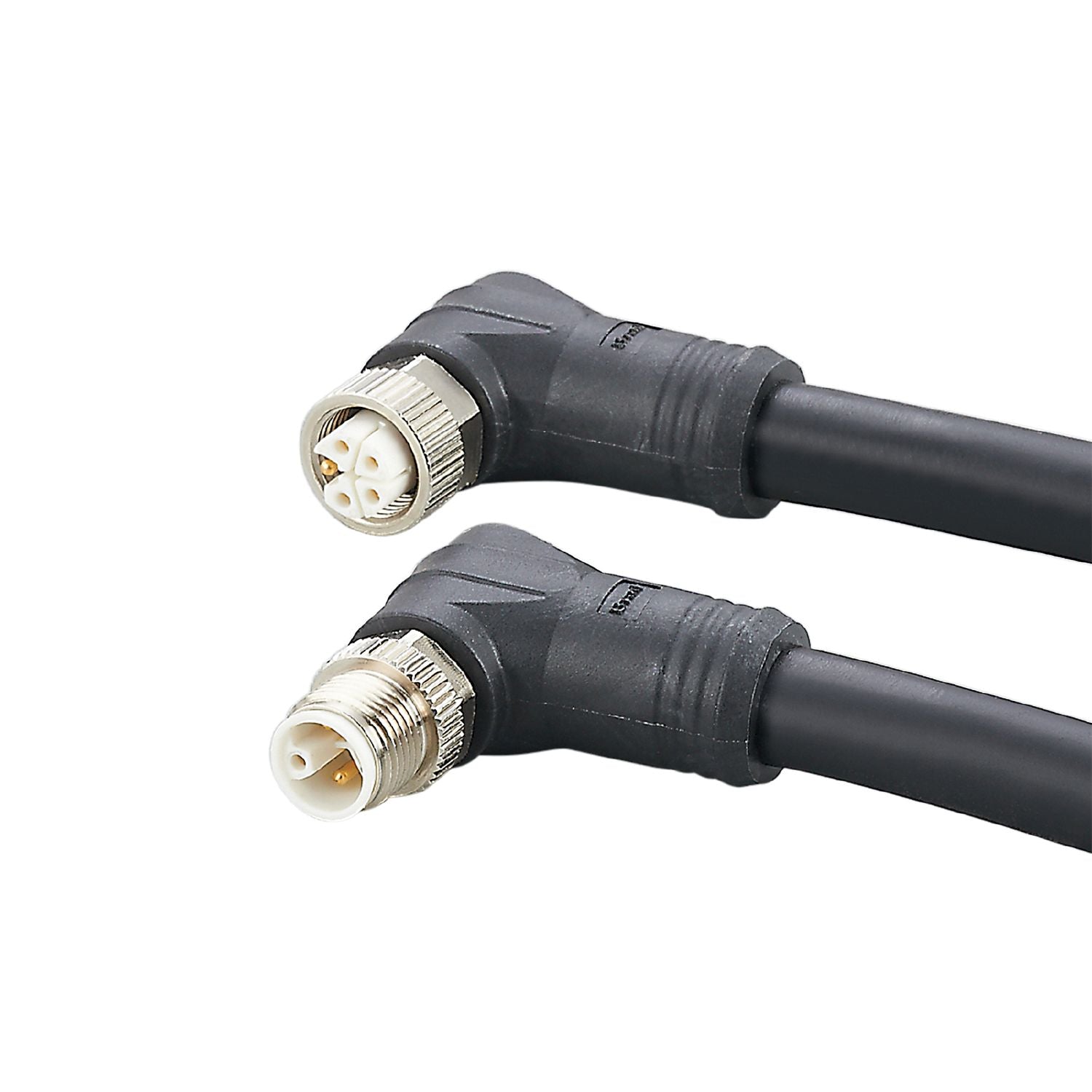

IFM E12666 - Connection cable VDOAX050MSS00,5H05STAH005MSS

Special feature	Gold-plated contacts
Design	power cable, L-coded

Operating voltage [V]	64 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...90
Protection	IP 67

Weight [g]	135.6
Materials	PP
Moulded-body material	TPE
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm²

Electrical connection - plug

	Connector: 1 x M12, angled; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12666-00 — 13.11.2019 —
