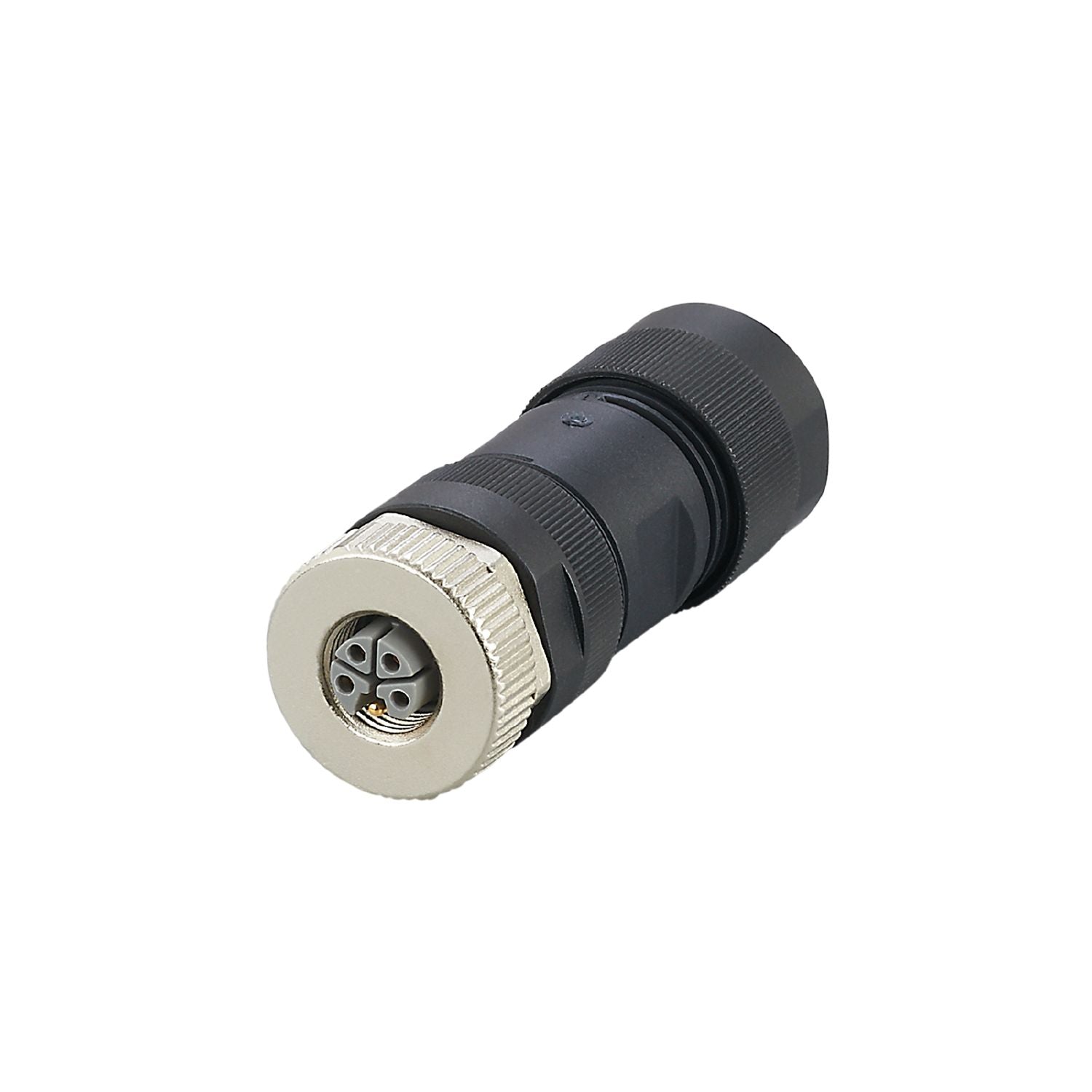

IFM E12672 - Wirable socket SDOGX050ZDSFKPG

Special feature	Gold-plated contacts
Design	L-coded

Operating voltage [V]	< 63 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	53.2
Dimensions [mm]	20 x 20 x 58
Materials	PA
Moulded-body material	PA
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm; max. 1.5 with wire end ferrules

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated
