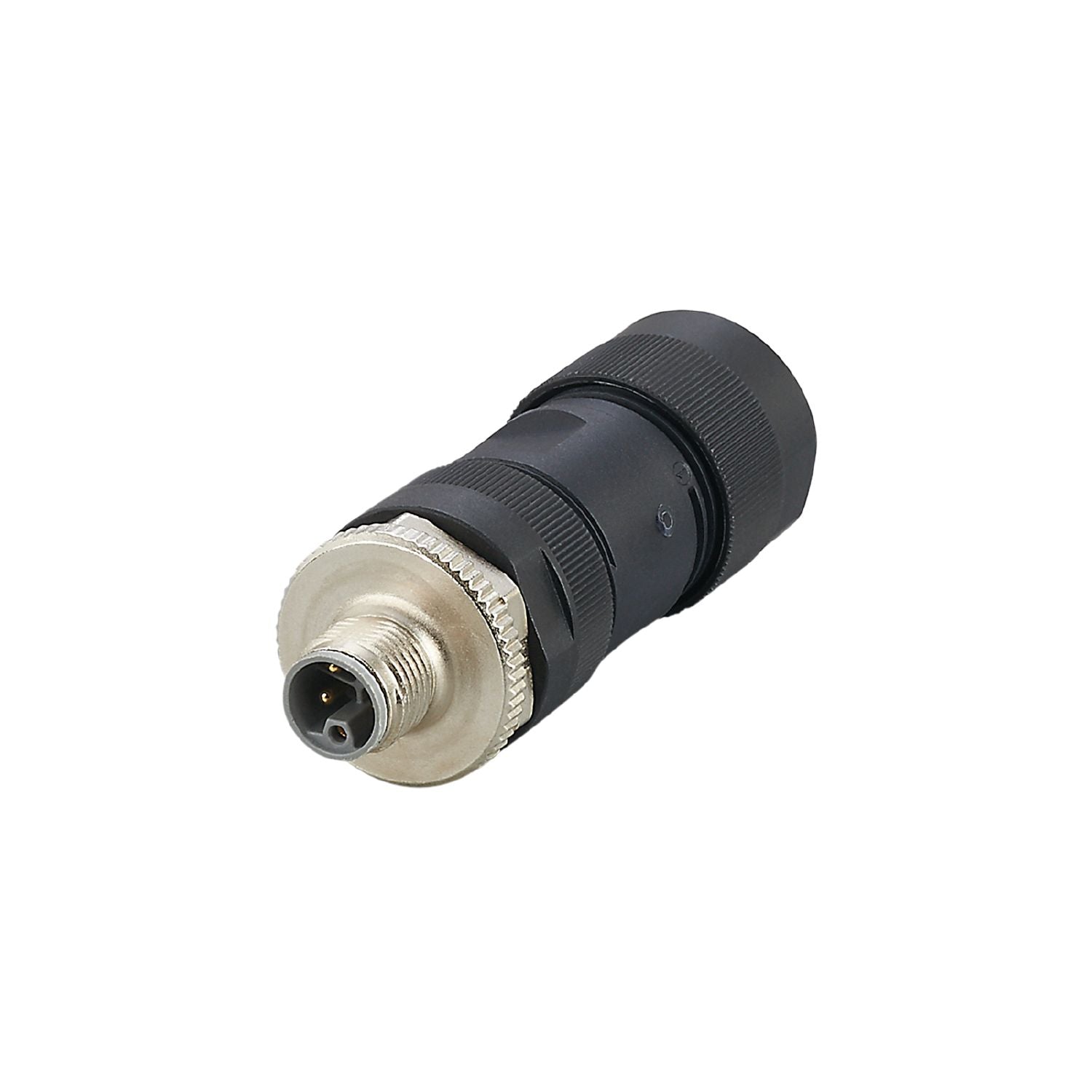

IFM E12673 - Wirable plug SSTGX050ZDSFKPG

Special feature	Gold-plated contacts
Design	L-coded

Operating voltage [V]	< 63 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	43.05
Dimensions [mm]	Ø 25 / L = 76
Materials	PA
Moulded-body material	PA
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12673-00 — 05.07.2019 —
