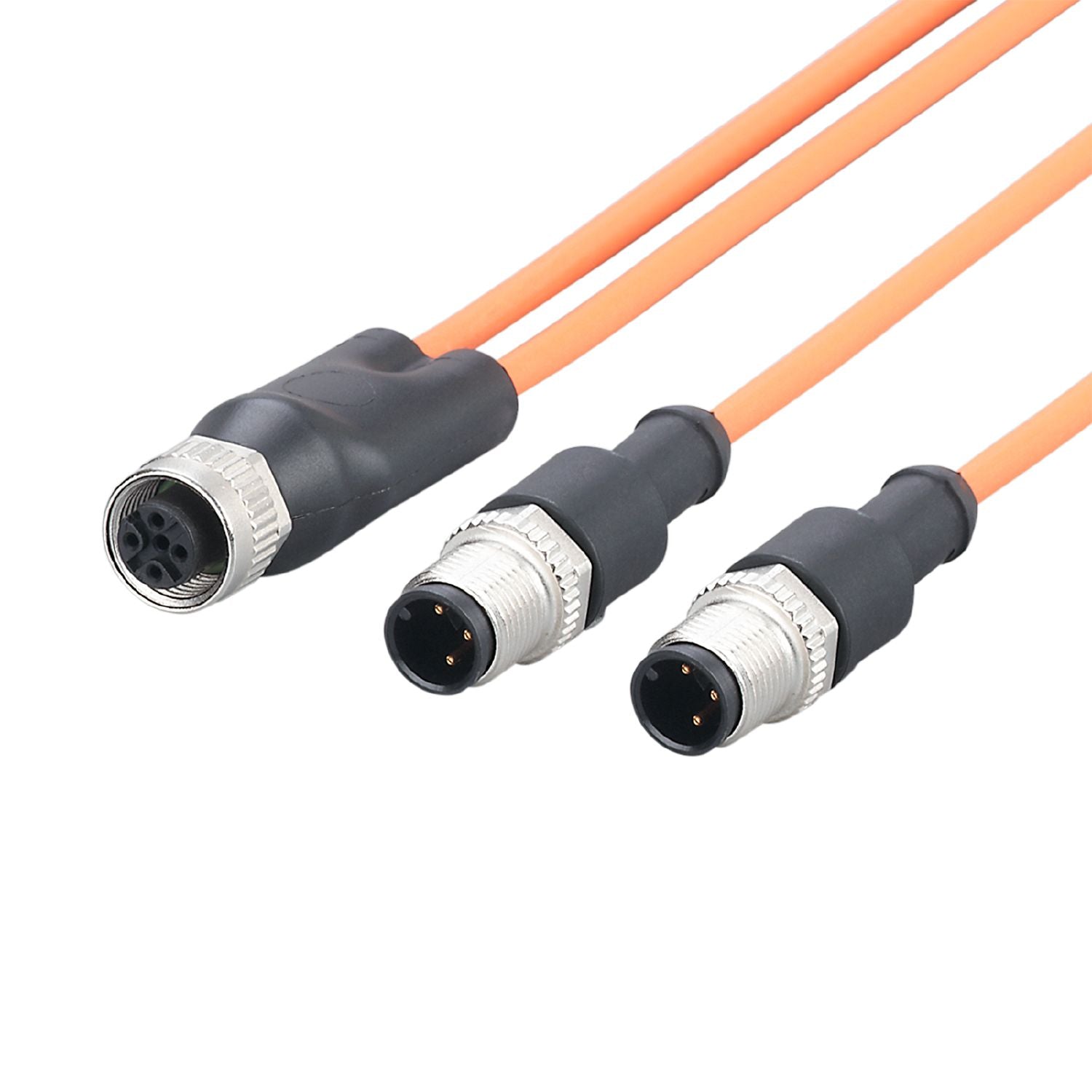

IFM E12723 - Y connection cable Y SPLITTER CABLE/M12 SOCKET/2xM12 PLUG

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 25 AC / < 60 DC
Protection class	III
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 67

Weight [g]	52
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated
Sealing material	FKM

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.3 m, PUR, Halogen-free, orange, Ø 4.0 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket C

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - plug A (2)

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - plug B (1)

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
