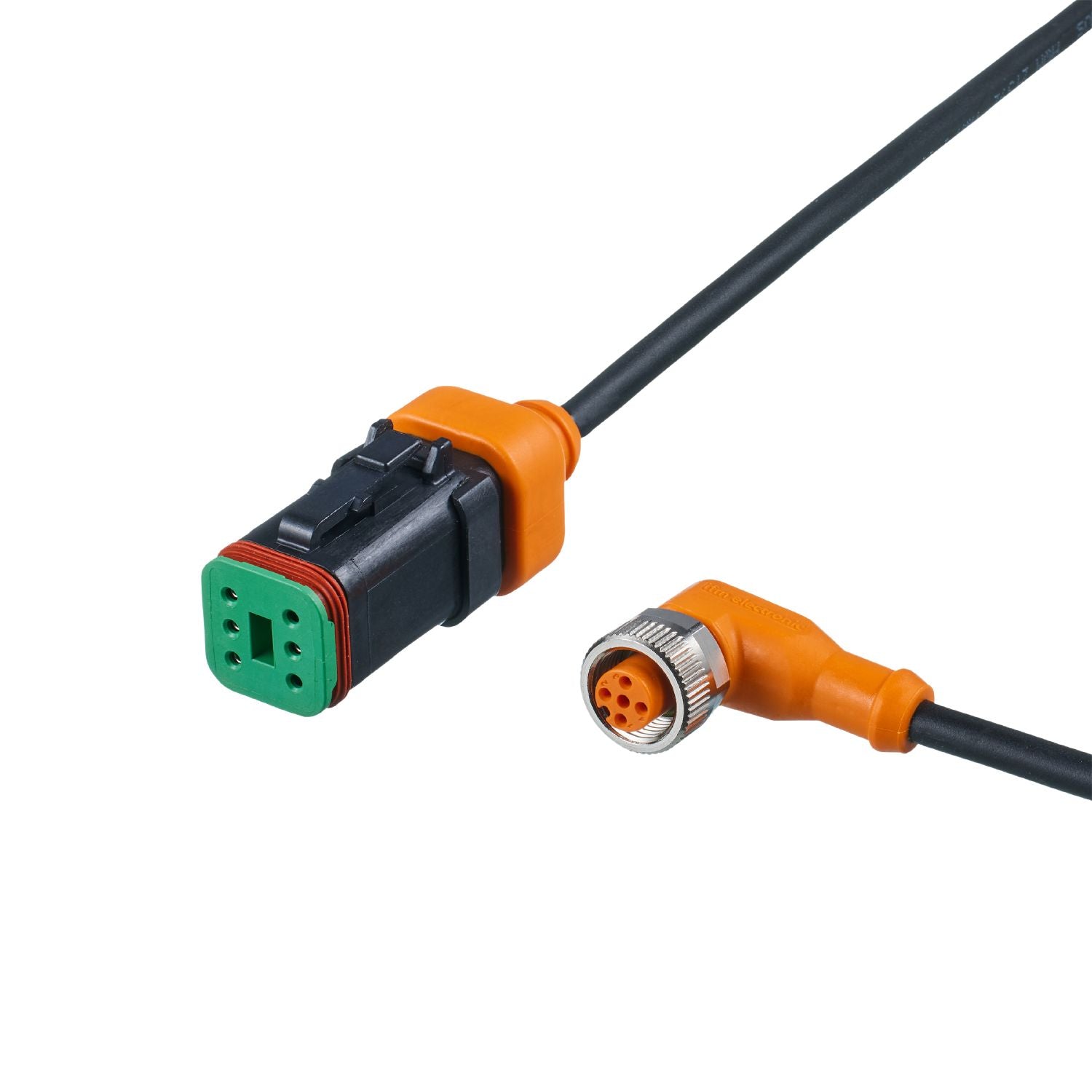

IFM E12728 - Connection cable VDOGS040--S0001H04DOAH040MSS

Special feature	Free from silicone; Halogen-free; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	8...32 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-40...80
Ambient temperature (moving) [°C]	-20...80
Protection	IP 67;(mating connector plugged in)

Weight [g]	93.2
Materials	PA; socket: TPU orange; Sealing: FKM
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - socket

	Connector: 1 x DEUTSCH connector, straight

Electrical connection

Connection	Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 4 x 0.50 mm² (28 x Ø 0.15 mm )

Electrical connection - socket

	Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
