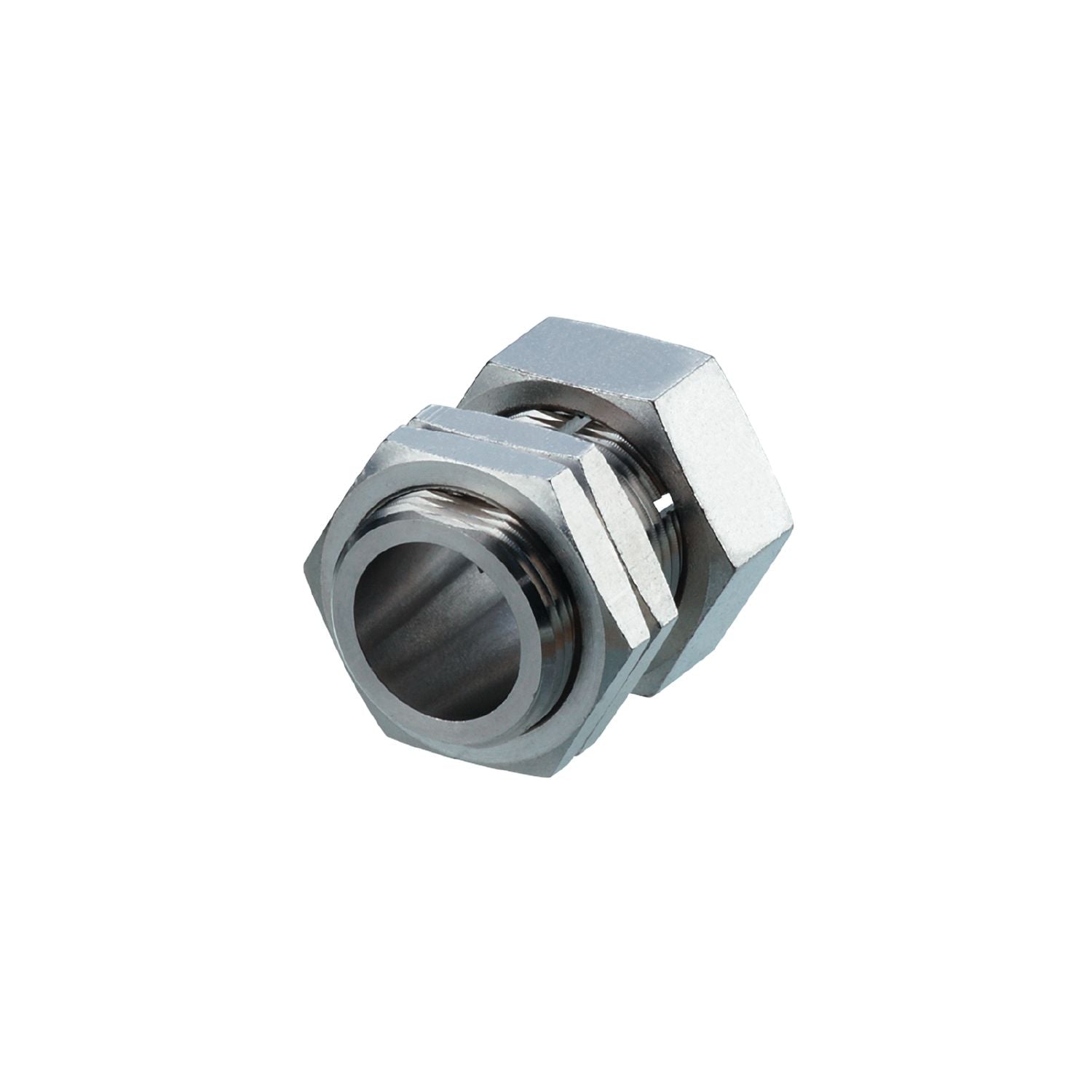

IFM E12746 - Mounting sleeve with end stop FIXING/M18/NT/MS/END STOP

End stop for defined installation position.
For mounting cylindrical sensors.
Easy and quick replacement without readjustment.
Reliable protection against damage.
Robust design for use in harsh industrial environments

Design	with end stop

Weight [g]	105.6
Installation instruction	align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range)
Dimensions [mm]	M24 x 1.5 / L = 34.5
Thread designation	M24 x 1.5
Inside diameter [mm]	18
Materials	brass white bronze coated; Nuts: brass white bronze coated
Tightening torque [Nm]	5;(lock nuts: 40)

Accessories

Items supplied	Nuts: 2

Pack quantity	1 pcs.
