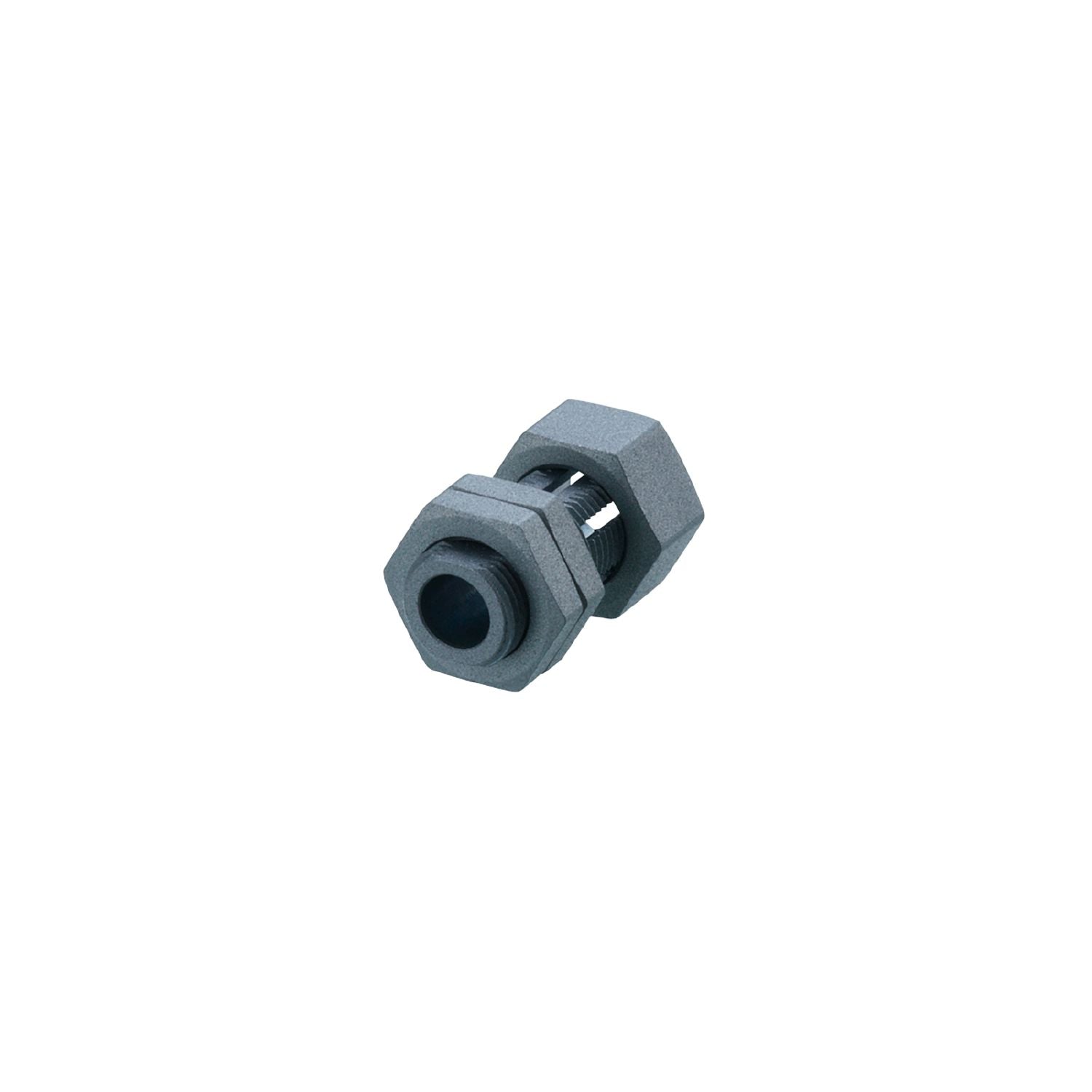

IFM E12753 - Mounting sleeve with end stop FIXING/M8/NT/FE/COATED/END ST

End stop for defined installation position.
For mounting cylindrical sensors.
Easy and quick replacement without readjustment.
Reliable protection against damage.
Resistant to weld slag thanks to non-stick coating

Special feature	anti-spatter
Design	with end stop

Weight [g]	28.25
Installation instruction	align the sensing face of the sensor to the right (see scale drawing)
Dimensions [mm]	M12 x 1 / L = 28
Thread designation	M12 x 1
Inside diameter [mm]	8
Materials	steel galvanised; anti-spatter; lock nuts:steel galvanised; anti-spatter
Tightening torque [Nm]	5;(lock nuts: 10)

Accessories

Items supplied	Nuts: 2

Pack quantity	1 pcs.

Diagrams and graphs

Installation
