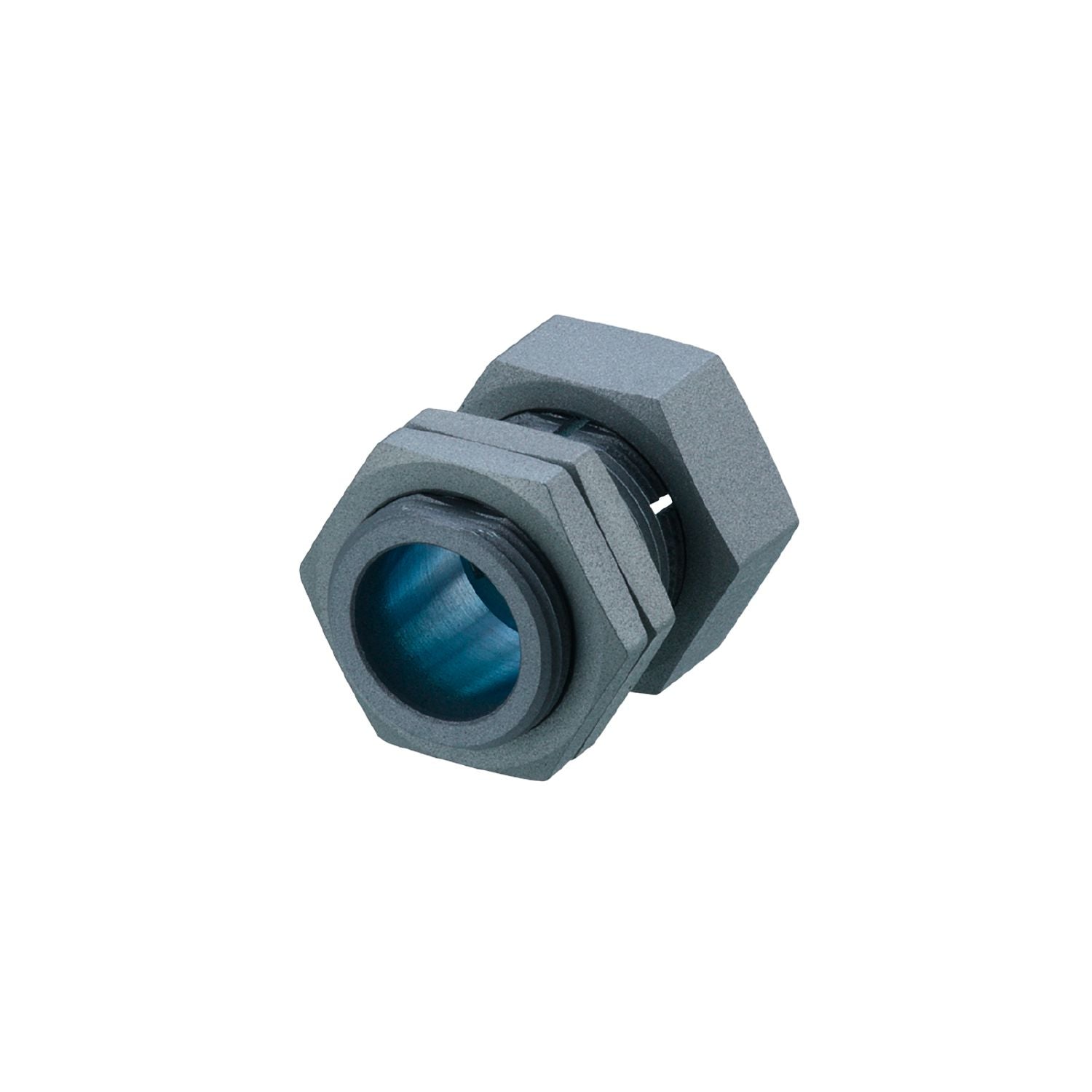

IFM E12755 - Mounting sleeve with end stop FIXING/M18/NT/FE/COATED/END ST

End stop for defined installation position.
For mounting cylindrical sensors.
Easy and quick replacement without readjustment.
Reliable protection against damage.
Resistant to weld slag thanks to non-stick coating

Special feature	anti-spatter
Design	with end stop

Weight [g]	97
Installation instruction	align the sensing face of the sensor to the right (see scale drawing)
Dimensions [mm]	M24 x 1.5
Thread designation	M24 x 1.5
Inside diameter [mm]	18
Materials	steel galvanised; anti-spatter; lock nuts:steel galvanised; anti-spatter
Tightening torque [Nm]	5;(lock nuts: 40)

Accessories

Items supplied	Nuts: 2

Pack quantity	1 pcs.

Diagrams and graphs

Installation

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12755-00 — 17.03.2023 —
