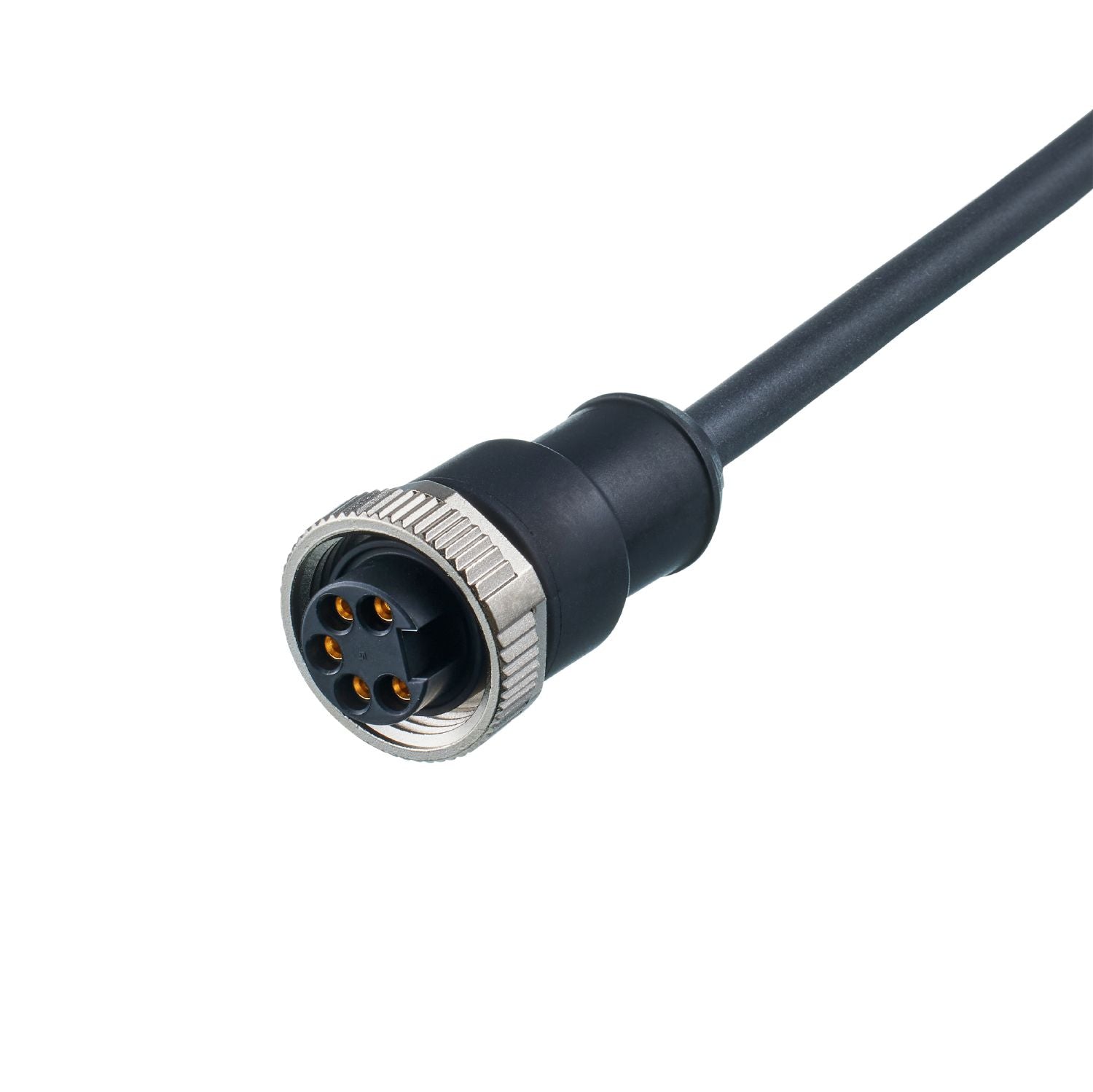

IFM E12772 - Connecting cable with socket ADOGB050ZDS0002B05

Special feature	Gold-plated contacts; Drag chain suitability

Operating voltage [V]	< 400 AC/DC
Protection class	II
Max. current load total [A]	5

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 68

Weight [g]	187.7
Dimensions [mm]	26 x 26 x 49.9
Moulded-body material	PUR
Material nut	diecast zinc
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 7.5 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio.

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, black, Ø 7.3 mm; 5 x 0.75 mm²

Electrical connection - socket

Connection	Connector: 1 x 7/8", straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12772-00 — 02.09.2022 —
