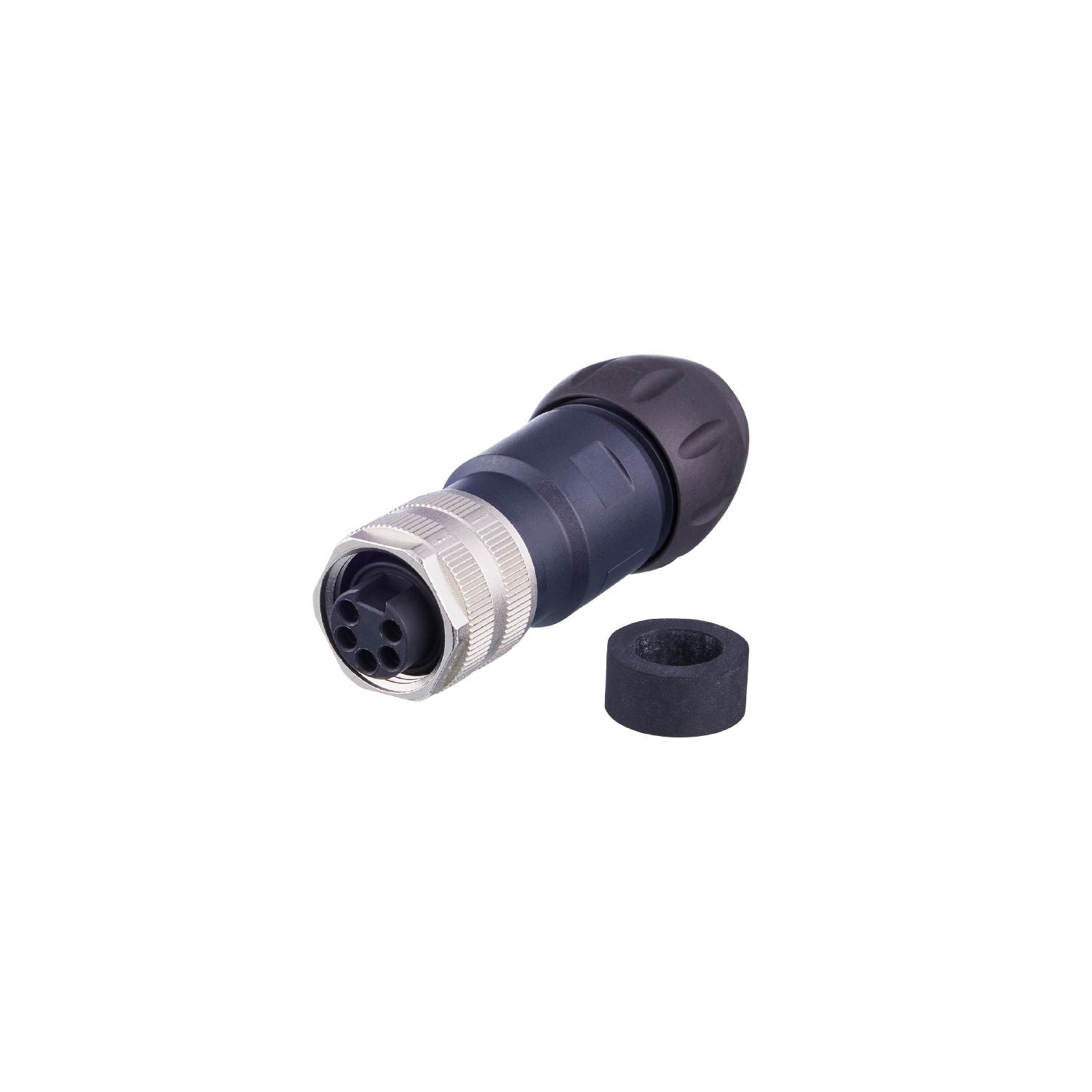

IFM E12774 - Wirable socket SDOGB050ZDSFKPG

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 300 AC/DC
Protection class	II
Max. current load total [A]	9

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	48.808
Moulded-body material	PBT
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16

Electrical connection - socket

Connection	Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated
