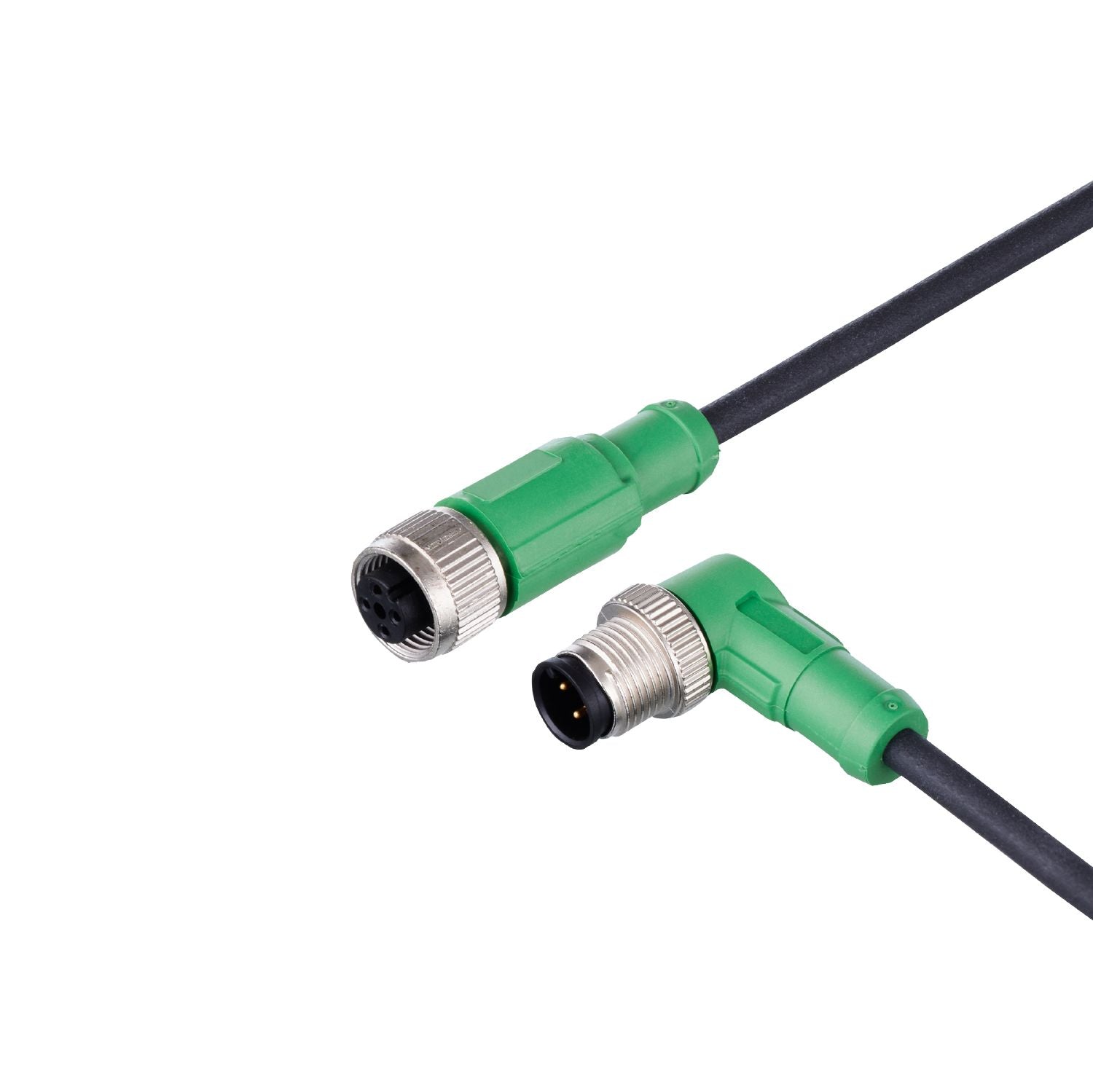

IFM E12783 - Connection cable VDOGH040ZDS0005M04STAH040ZDS

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	< 48 AC / < 60 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-25...80
Protection	IP 65; IP 67

Weight [g]	221.85
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated
Sealing material	NBR
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² bending cycles > 10 Mio.

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm

Electrical connection

Connection	Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Sealing: NBR; Contacts: gold-plated; Tightening torque: 0.4 Nm; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12783-00 — 07.02.2024 —
