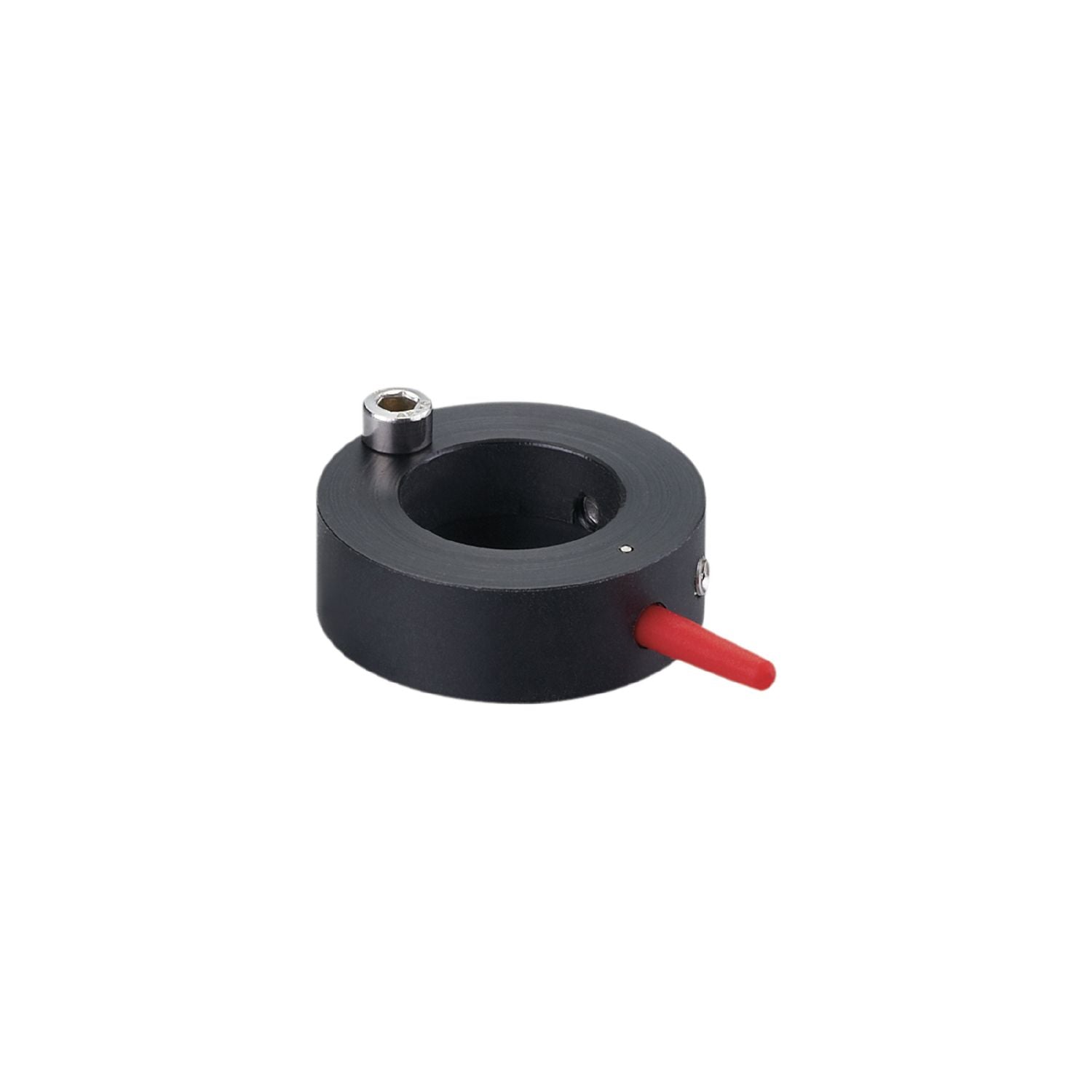

IFM E17013 - Target puck for valve actuators PUCK D48 +90/-0 / W25

For monitoring valve positions.
For reliable position feedback on valve actuators.
Easy mounting directly on the shaft of the drive.
Non-contact and self-cleaning system.
Selectable position of the damping screws

Design	for butterfly valve

Weight [g]	29
Target puck diameter [mm]	48
Materials	target puck: PA 6; pointer: silicone RAL 3020; counter-sunk screw: stainless steel (1.4305 / 303); head cap screw: stainless steel (1.4301 / 304); set screw: $1_4301; locking pin: stainless steel (1.4301 / 304)
Tightening torque [Nm]	2;(screws)

Accessories

Items supplied	screws set screws: 2 x M5 x 10, stainless steel targets head cap screw: 1 x M5 x 6, stainless steel counter-sunk screw: 1 x M5 x 8, stainless steel

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17013-00 — 25.08.2015 —
