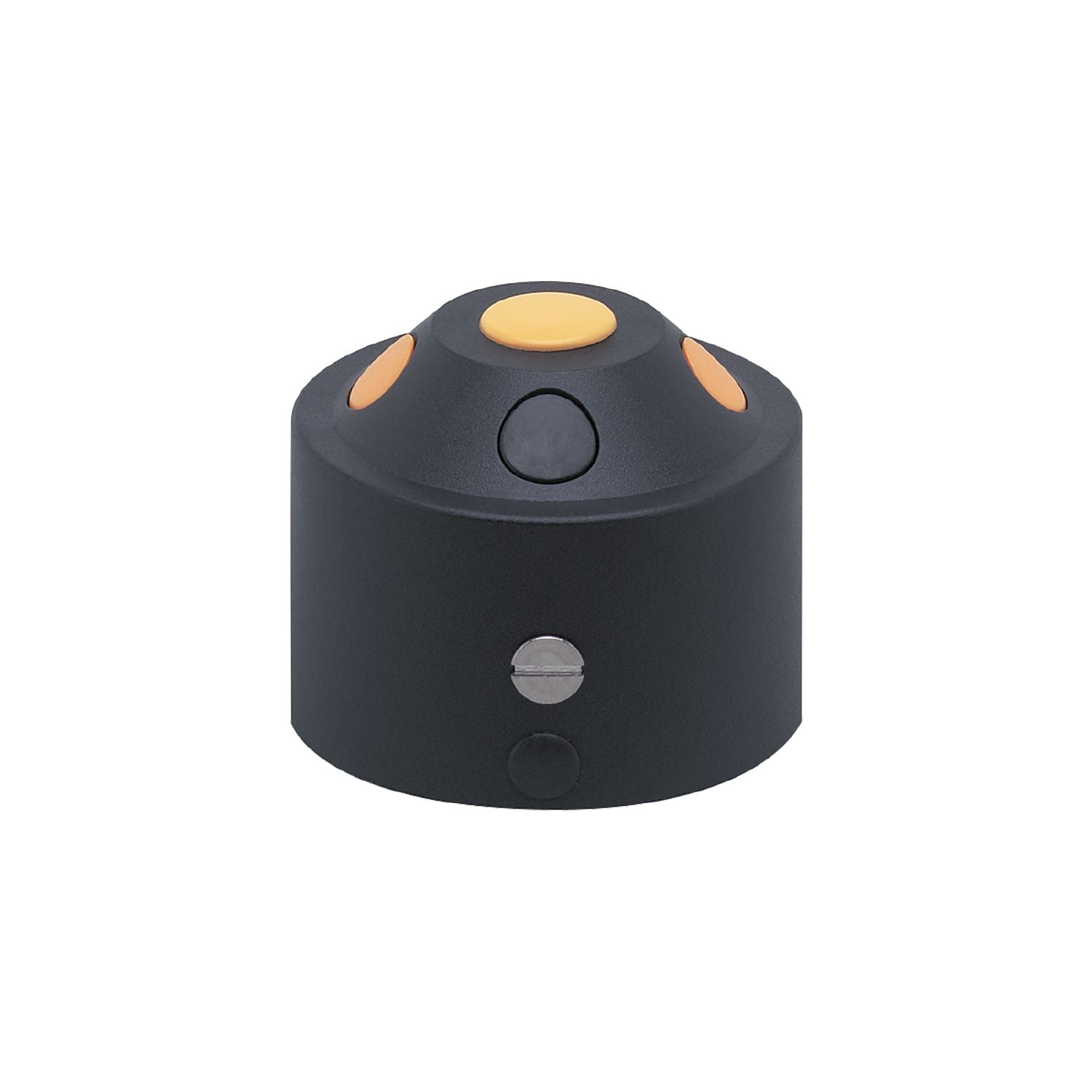

IFM E17324 - Target puck for valve actuators PUCK/IND/BK/65/8

For monitoring valve positions.
For reliable position feedback on valve actuators.
Easy mounting directly on the shaft of the drive.
Non-contact and self-cleaning system.
Selectable position of the damping screws

Design	for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337

Weight [g]	62.9
Target puck diameter [mm]	65
Hole spacing [mm]	80
Shaft height of valve drive [mm]	30
Number of possible switching flag positions	8
Materials	target puck: PA 6 black; screws: stainless steel (1.4302)

Pack quantity	1 pcs.
