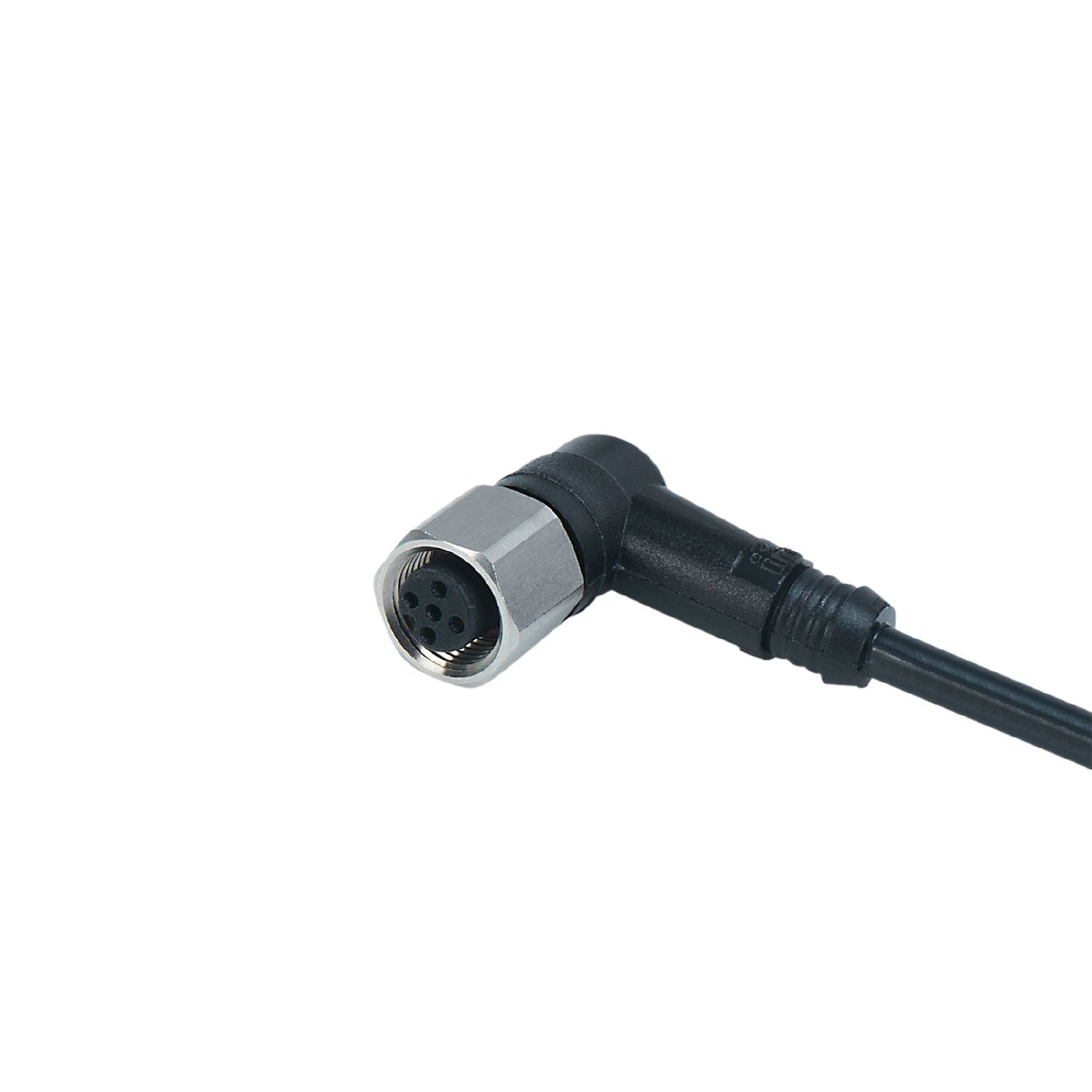

IFM E18017 - Connecting cable with socket ADOAH040VAS0005E04

Angled type for use where space is restricted.
Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Gold-plated contacts

Operating voltage [V]	< 300 AC/DC

Operating conditions

Ambient temperature [°C]	-10...100
Protection	IP 68

Weight [g]	181.437
Dimensions [mm]	31 x 14.5 x 31
Materials	PVC
Moulded-body material	PVC
Material nut	stainless steel (1.4571/316Ti )

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PVC, black; 4 x 0.34 mm² / AWG 22

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PVC; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated
