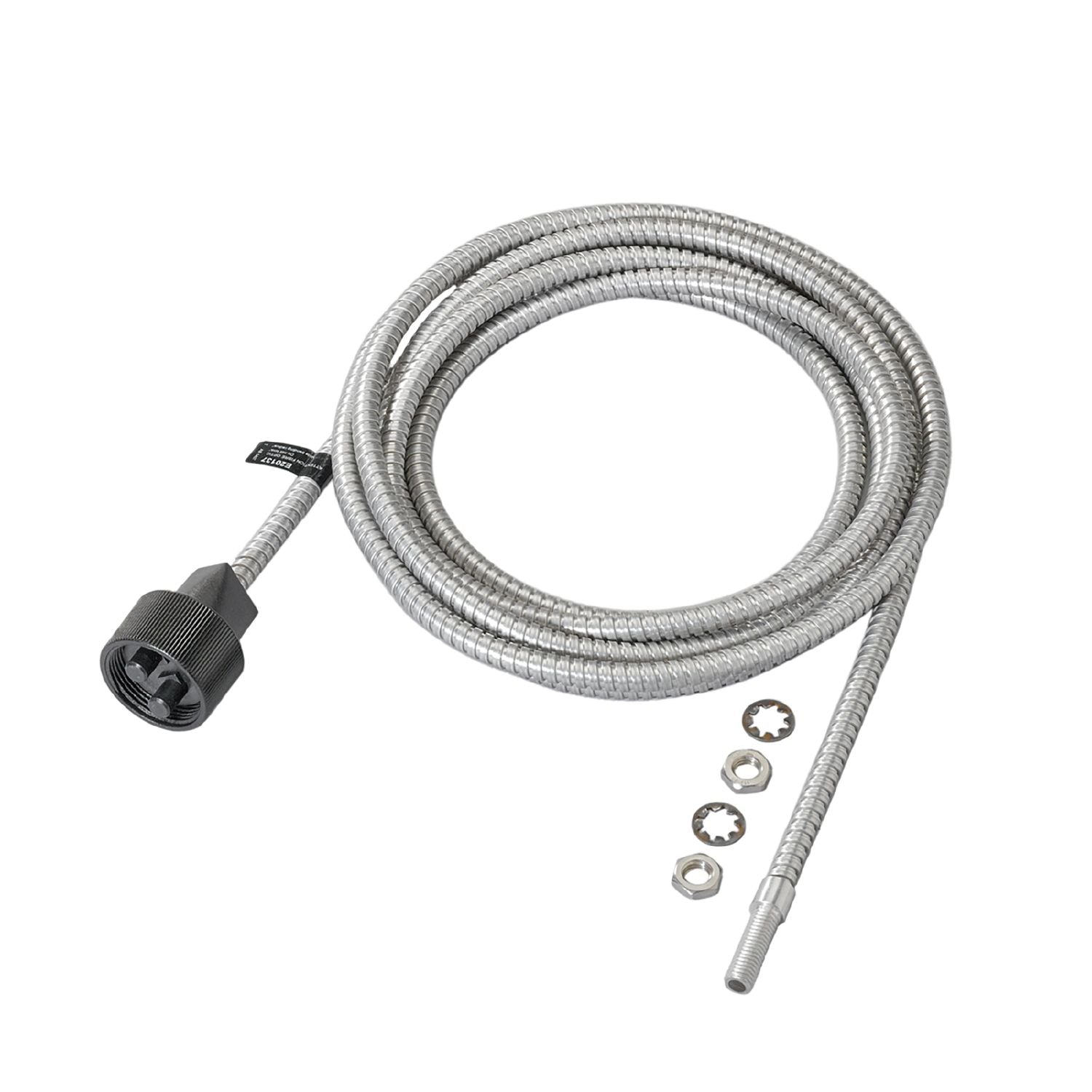

IFM E20137 - Fibre optic diffuse reflection sensor FT-30-A-A-M8/3M

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
For use at short range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre optic amplifier type	OIF

Range fibre optics [mm]	45

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	239.7
Version of sensing head	straight
Sensing head thread	M8
Total length [mm]	3000
Min. bending radius [mm]	30;(for fixed installation)
Fibre arrangement
Materials	Adapter: PA
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	hexagon nuts: 2 x M8, stainless steel tooth lock washers: 2 knurled nut: 1 x M30

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20137-00 — 06.03.2003 —
