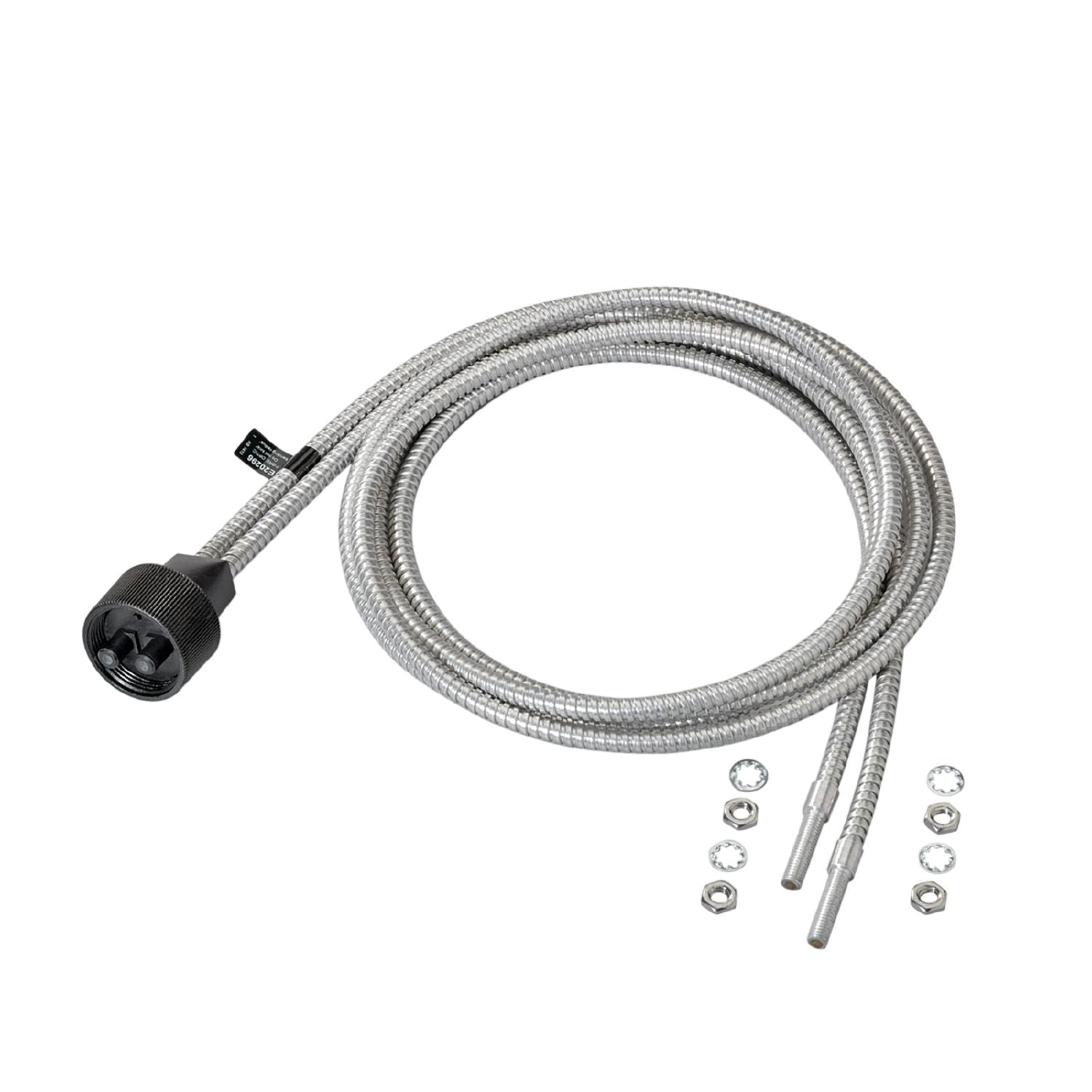

IFM E20296 - Fibre optic through-beam sensor FE-30-A-A-M6/1,5M

For applications in high-temperature areas.
Aluminium sheathing for use up to 290 °C.
Installation in places where access is difficult.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Through-beam sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre-optic amplifier type	OIF

Range of fibre optics [mm]	270

Operating conditions

Ambient temperature [°C]	-40...290

Weight [g]	157.8
Version of sensing head	straight
Sensing head thread	M6
Total length [mm]	1500
Min. bending radius [mm]	30;(for fixed installation)
Fibre arrangement
Materials	Adapter: PA
Fibre material	glass
Fibre head material	aluminium
Fibre sheath material	aluminium

Accessories

Items supplied	hexagon nuts: 4 x M6, stainless steel tooth lock washers: 4 knurled nut: 1 x M30

Pack quantity	1 pcs.
