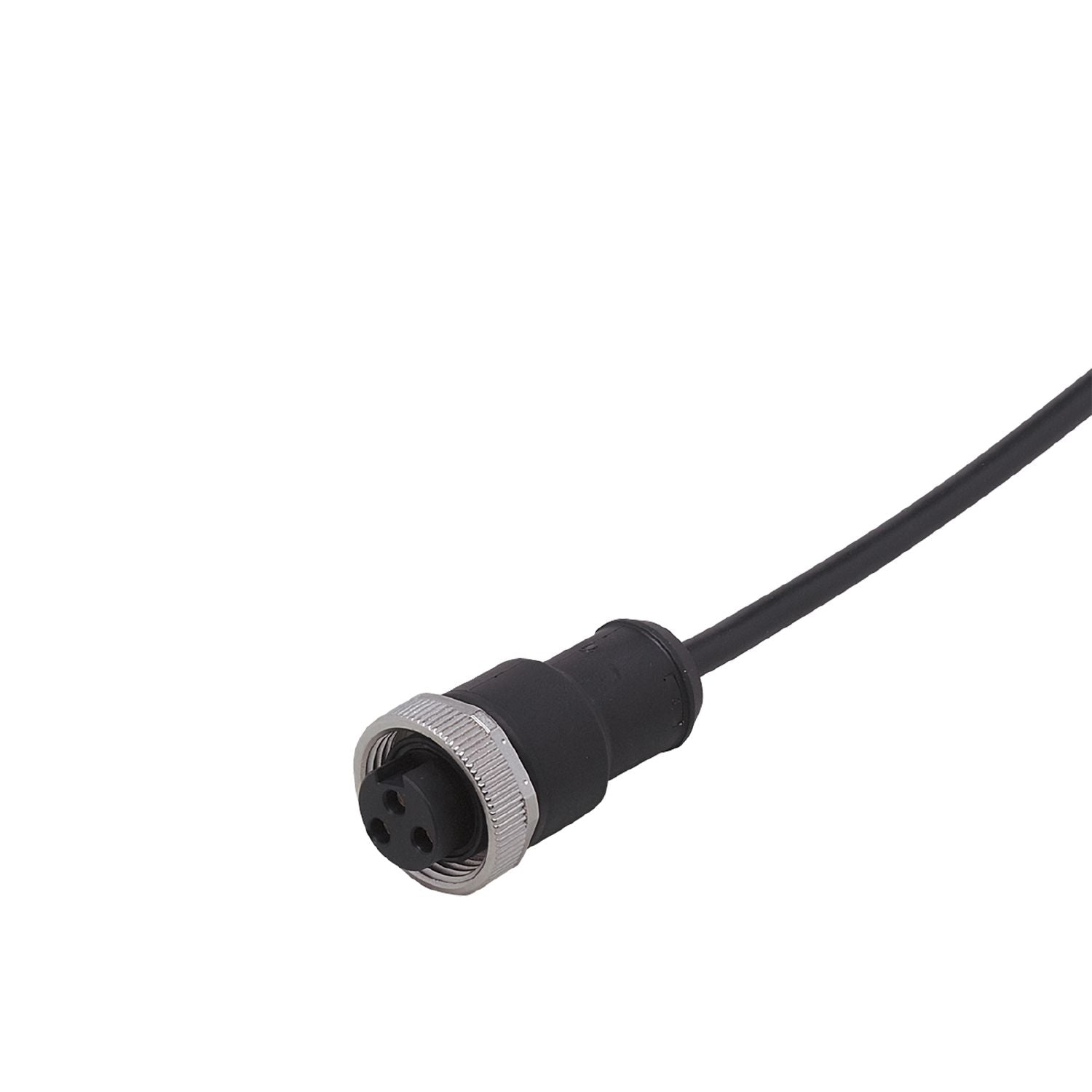

IFM E20429 - Connecting cable with socket ADOGB030MSS0005E03

Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 300 AC/DC

Operating conditions

Ambient temperature [°C]	-30...80
Ambient temperature (moving) [°C]	-5...80
Protection	IP 68

Weight [g]	279.3
Dimensions [mm]	26 x 26 x 49.9
Moulded-body material	TPU
Material nut	diecast zinc

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PVC, black, Ø 5.2 mm; 3 x 0.75 mm² (24 x Ø 0.2 mm )

Electrical connection - socket

Connection	Connector: 1 x 7/8", straight; Moulded body: TPU; Locking: diecast zinc
