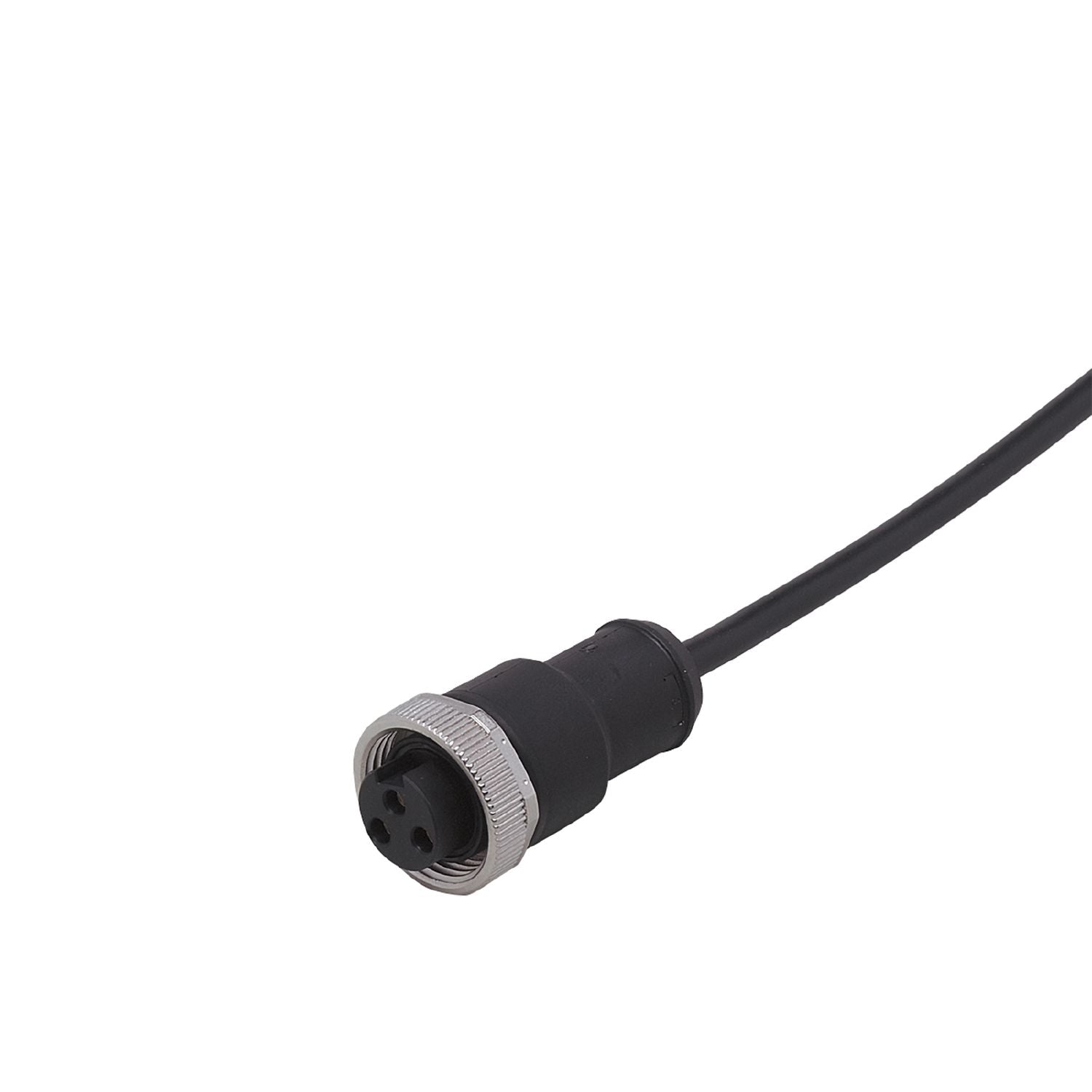

IFM E20430 - Connecting cable with socket ADOGB030MSS0002E03

Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 300 AC/DC

Operating conditions

Ambient temperature [°C]	-30...80
Ambient temperature (moving) [°C]	-5...80
Protection	IP 68

Weight [g]	117.5
Dimensions [mm]	26 x 26 x 49.9
Moulded-body material	TPU
Material nut	diecast zinc

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PVC, black, Ø 5.4 mm; 3 x 0.5 mm²

Electrical connection - socket

Connection	Connector: 1 x 7/8", straight; Moulded body: TPU; Locking: diecast zinc

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20430-02 — 03.12.2021 —
