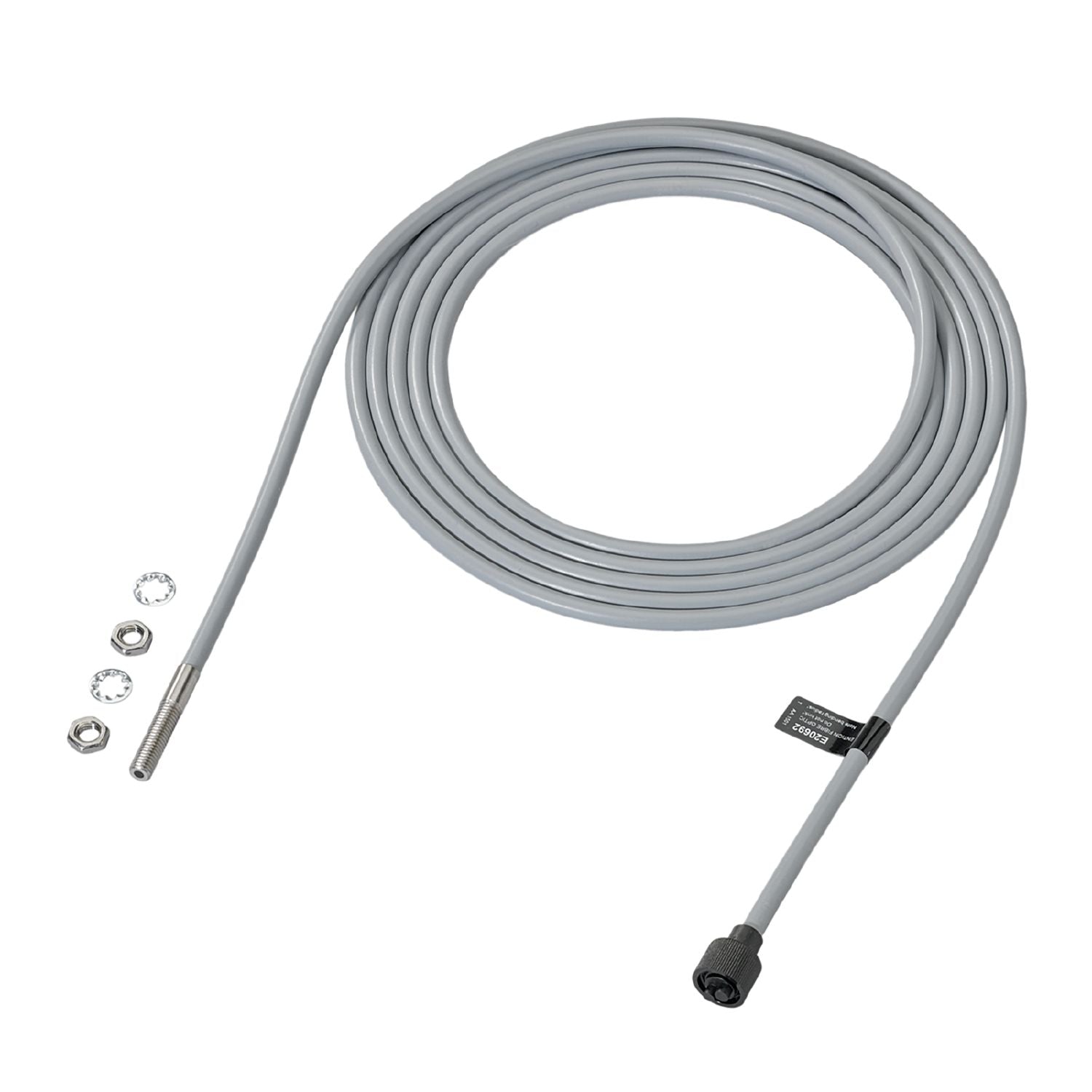

IFM E20692 - Fibre optic diffuse reflection sensor FT-00-MPV-M6/3M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

Range with fibre optic amplifier type	OCF; OKF; OUF

Range fibre optics [mm]	250

Range fibre optics [mm]	13

Range fibre optics [mm]	13

Operating conditions

Ambient temperature [°C]	-20...80

Weight [g]	158
Version of sensing head	straight
Sensing head thread	M6
Total length [mm]	3000
Min. bending radius [mm]	20
Fibre arrangement
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	metal silicone

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2 knurled nut: 1 x M11

Pack quantity	1 pcs.
