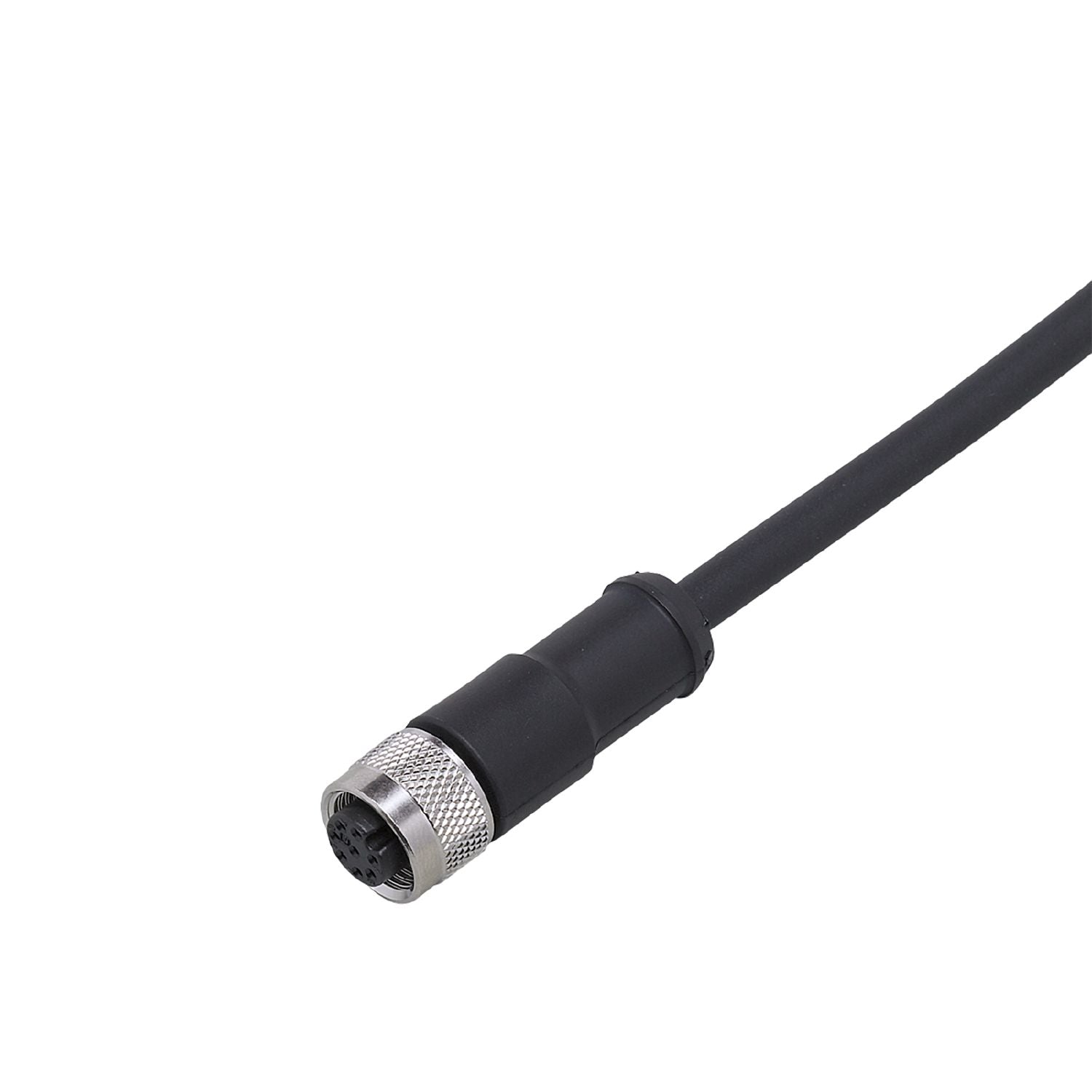

IFM E20838 - Connecting cable with socket ADOGH080MSS0005B08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range

Special feature	Screened cable

Operating voltage [V]	< 60 AC/DC

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	290.7
Dimensions [mm]	14.5 x 14.5 x 43.9
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black, shielded; 7 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated
