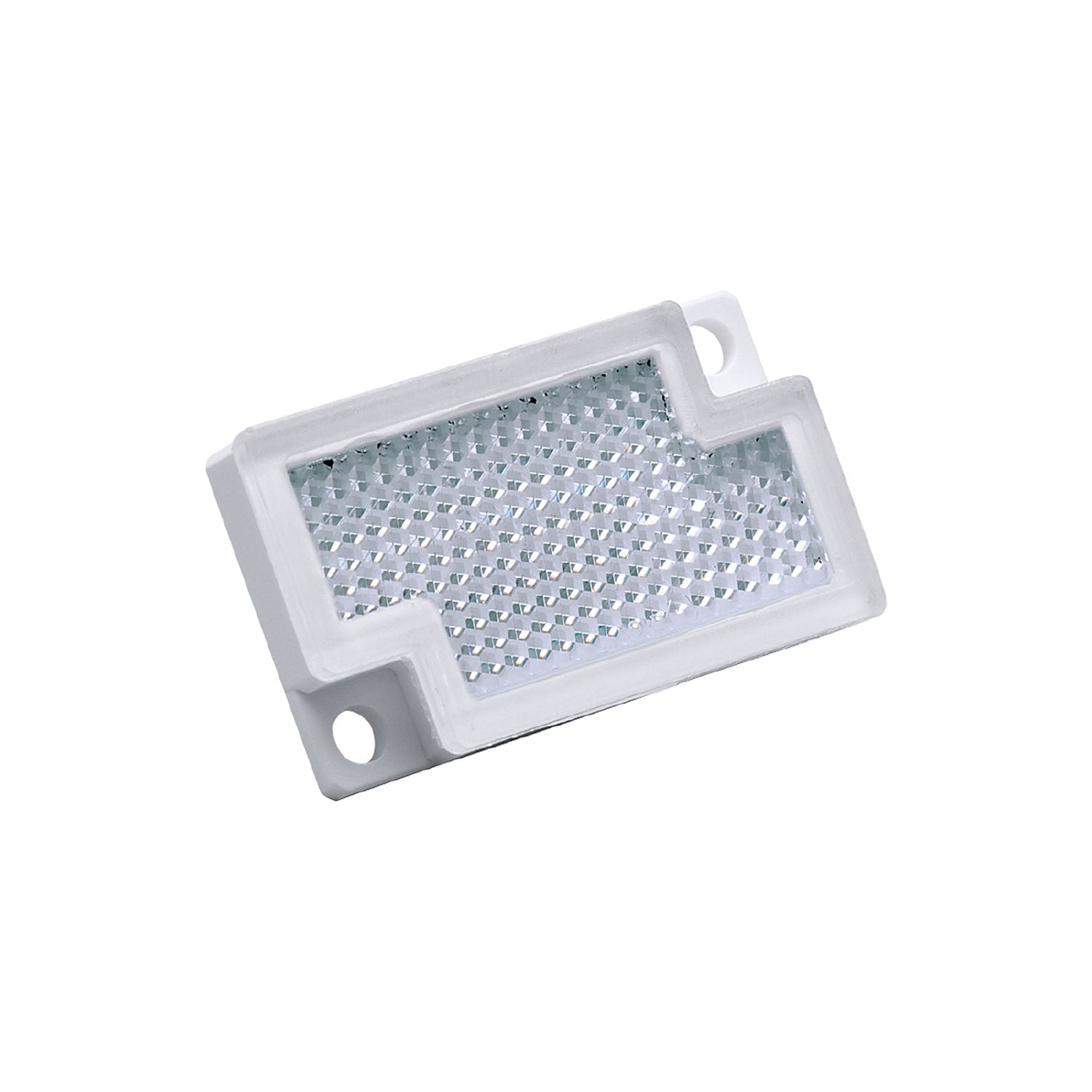

IFM E20989 - Reflector for retro-reflective laser sensors REFLECTOR LASER TS-14X23

For the reliable operation of laser retro-reflective sensors.
Easy mounting using only two screws.
Suitable for red light and infrared light

Design	rectangular, for retro-reflective laser sensors

Operating conditions

Ambient temperature [°C]	-10...60

Weight [g]	2.4
Dimensions [mm]	14 x 23 x 5
Reflector surface [mm]	19 x 9.7
Materials	front panel: PMMA; base: ABS

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20989-01 — 16.08.2010 —
