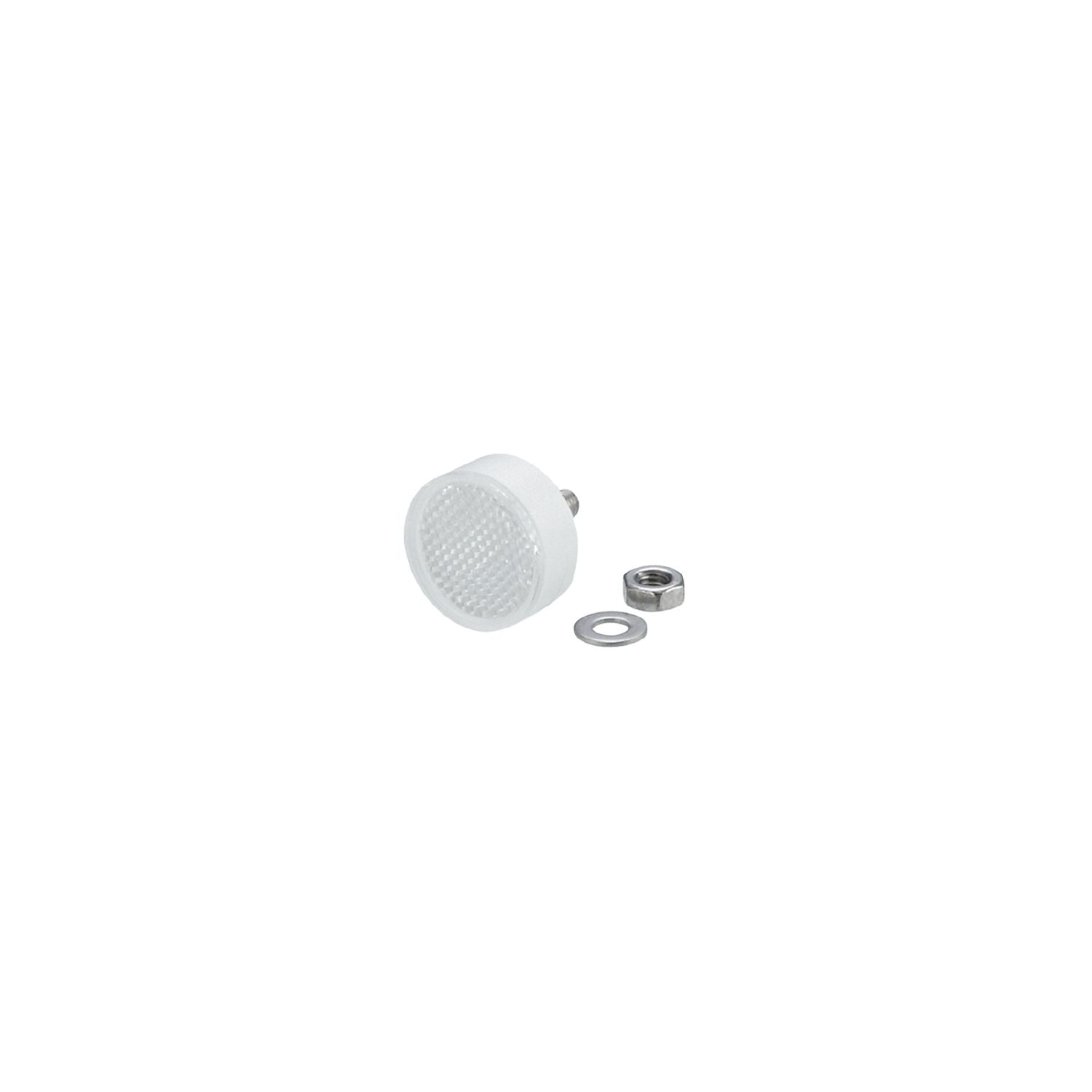

IFM E20993 - Reflector for retro-reflective laser sensors REFLECTOR LASER TS-19

For the reliable operation of laser retro-reflective sensors.
Easy mounting with only one screw.
Suitable for red light and infrared light

Design	round, for retro-reflective laser sensors, M3

Operating conditions

Ambient temperature [°C]	-10...60

Weight [g]	3
Dimensions [mm]	Ø 19 / L = 5
Reflector surface [mm]	Ø 17
Materials	screw: stainless steel (316 / 1.4401); washer: stainless steel (316 / 1.4401); nut: stainless steel (316 / 1.4401); front panel: PMMA; base: ABS

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20993-01 — 16.08.2010 —
