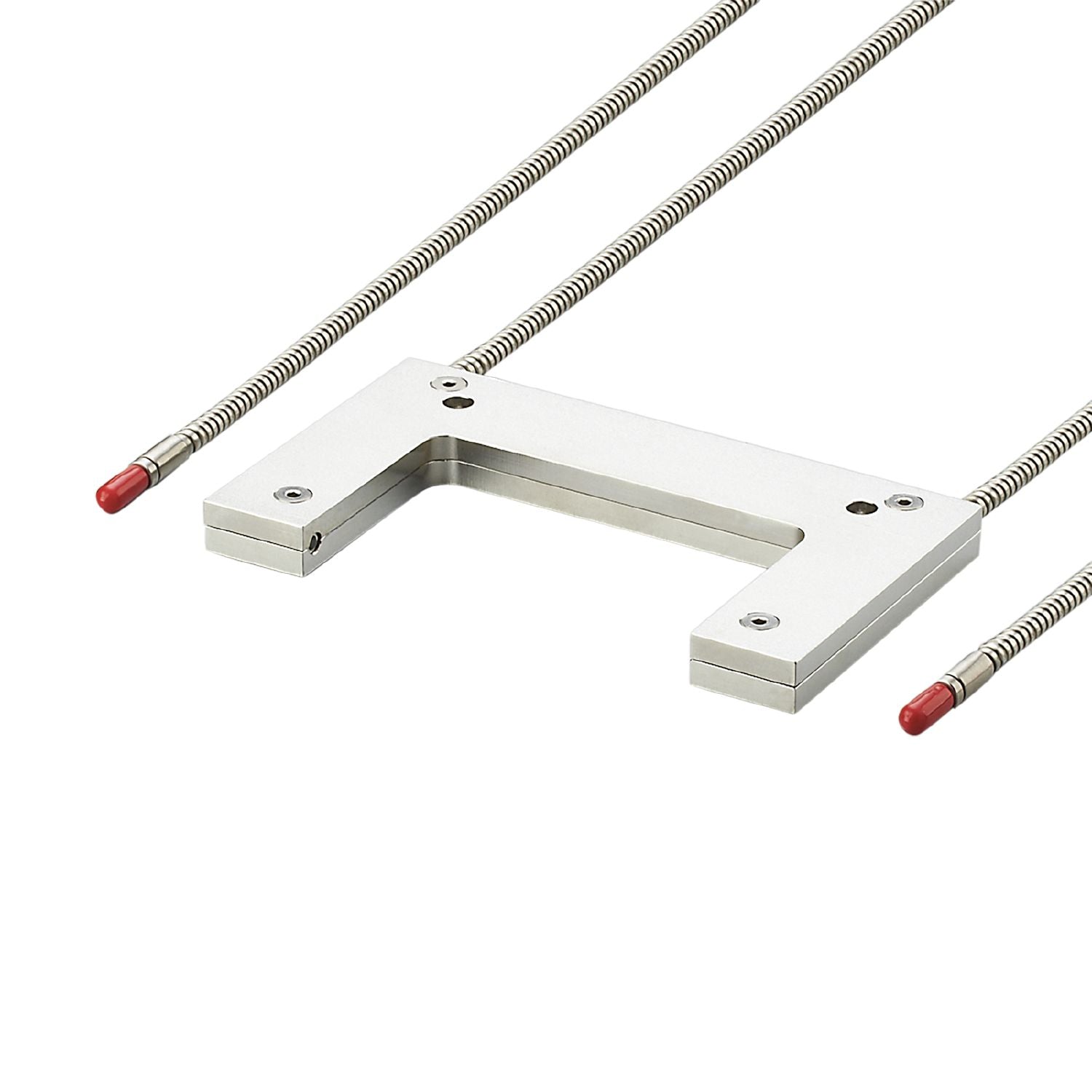

IFM E21132 - Fibre optic through-beam sensor FE-50-V-V-X/2,5M

For applications in high-temperature areas.
Stainless steel sheathing for use up to 315 °C.
Operation as photoelectric fork sensor.
Reliable detection of tiny objects.
Small bending radius

Function principle	Through-beam sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OMF

Range of fibre optics [mm]	93

Range of fibre optics [mm]	93

Operating conditions

Ambient temperature [°C]	-58...315

Weight [g]	1161.5
Sensing head height [mm]	12
Sensing head width [mm]	143
Sensing head length [mm]	85
Probe dimensions [mm]	12 x 143 x 85
Total length [mm]	2500
Min. bending radius [mm]	19
Materials	fixture: stainless steel (1.4301 / 304)
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	stainless steel (1.4305 / 303)

Pack quantity	1 pcs.
