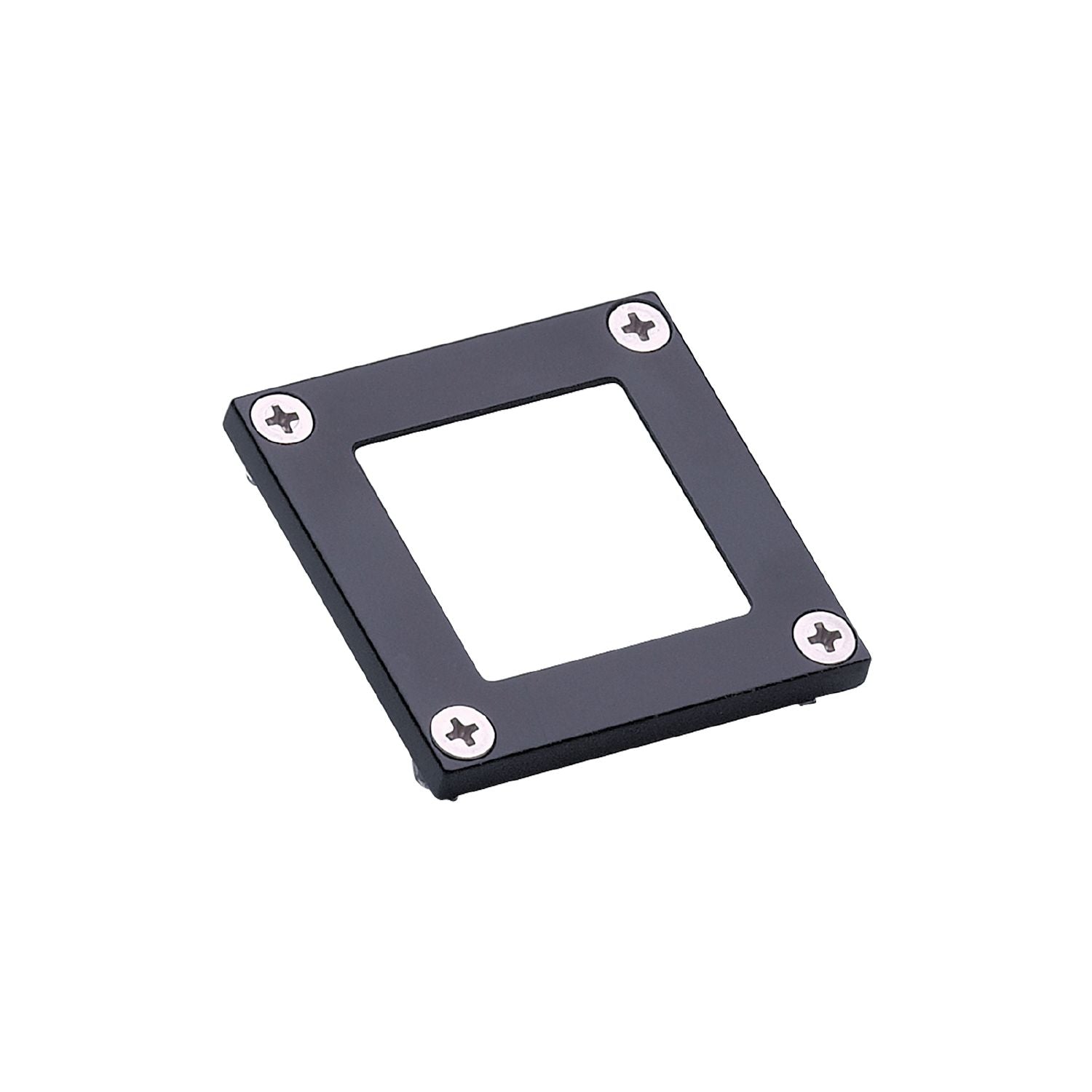

IFM E21133 - Protective cover MASKING FRAME FOR O1D

For optical distance sensors type O1D.
Efficient protection of the front pane against soiling and damage.
Safe protection of the sensor against impact and shock.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments

Weight [g]	36.2
Dimensions [mm]	42 x 4.6 x 42
Materials	bezel: diecast zinc finish black; front pane: PMMA transparent and uncoloured; Sealing: FPM 75 ±5 Shore A; screws: stainless steel

Accessories

Items supplied	screws: 4 x M3 x 8

Remarks	By attaching the protective cover the measured distance value can be changed by up to +5 mm. This deviation influences the specified accuracy. The repeatability remains unchanged. By soiling or scratching the front pane the repeatability and accuracy of the sensor can deteriorate.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21133-00 — 05.04.2007 —
