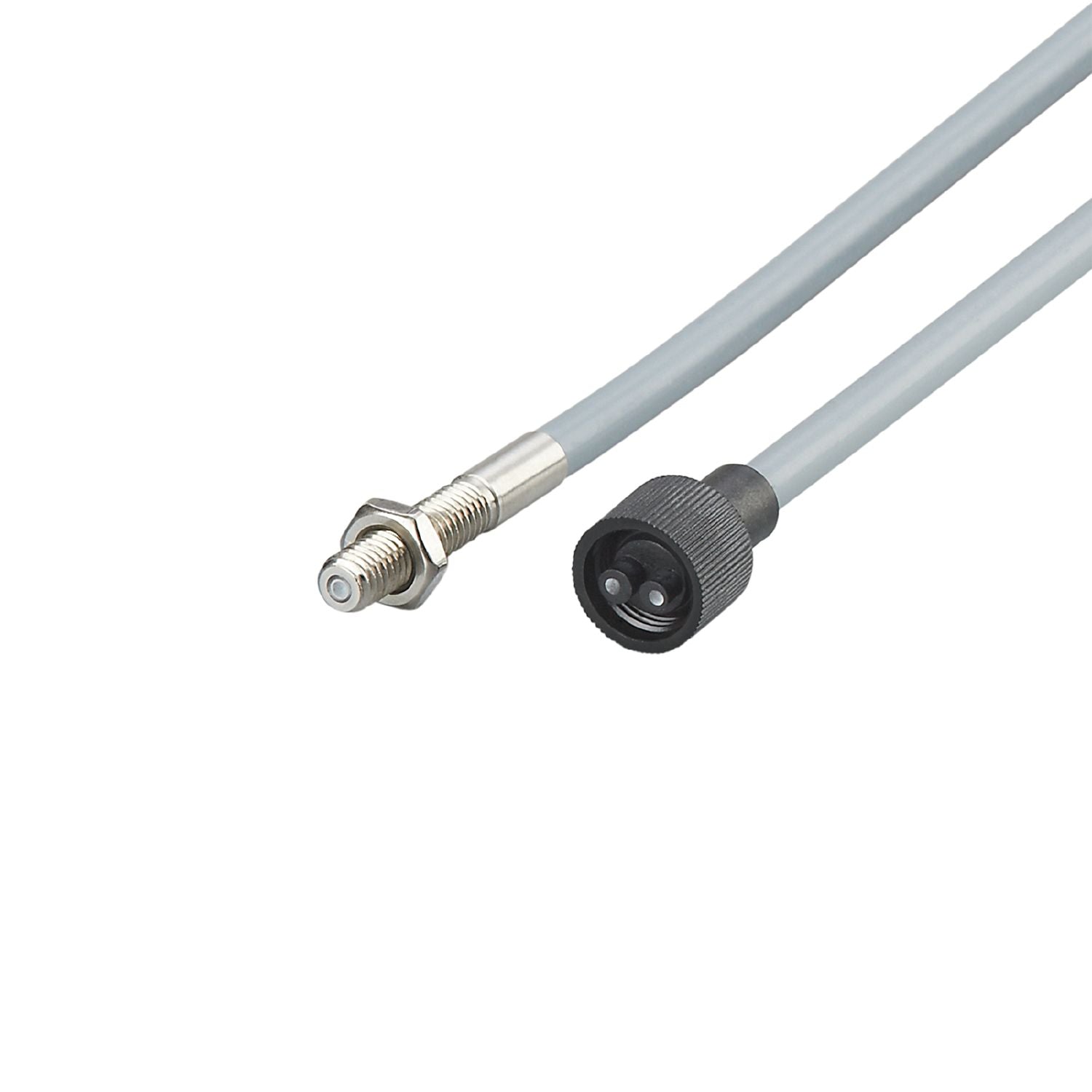

IFM E21155 - Fibre optic diffuse reflection sensor FT-00-M-W-M6/5M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
Long range.
Resistant to various aggressive chemicals.
Small bending radius

Function principle	Diffuse reflection sensor
Application	High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals

Detection zone

Range with fibre optic amplifier type	OKF

Range fibre optics [mm]	14

Operating conditions

Ambient temperature [°C]	-40...150

Weight [g]	278.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	35
Total length [mm]	5000
Min. bending radius [mm]	45
Fibre arrangement
Core diameter [mm]	1.6
Fibre diameter [mm]	0.05
External diameter [mm]	5.4
Fibre material	glass
Fibre head material	stainless steel (1.4571/316Ti )
Fibre sheath material	metal silicone

Pack quantity	1 pcs.
