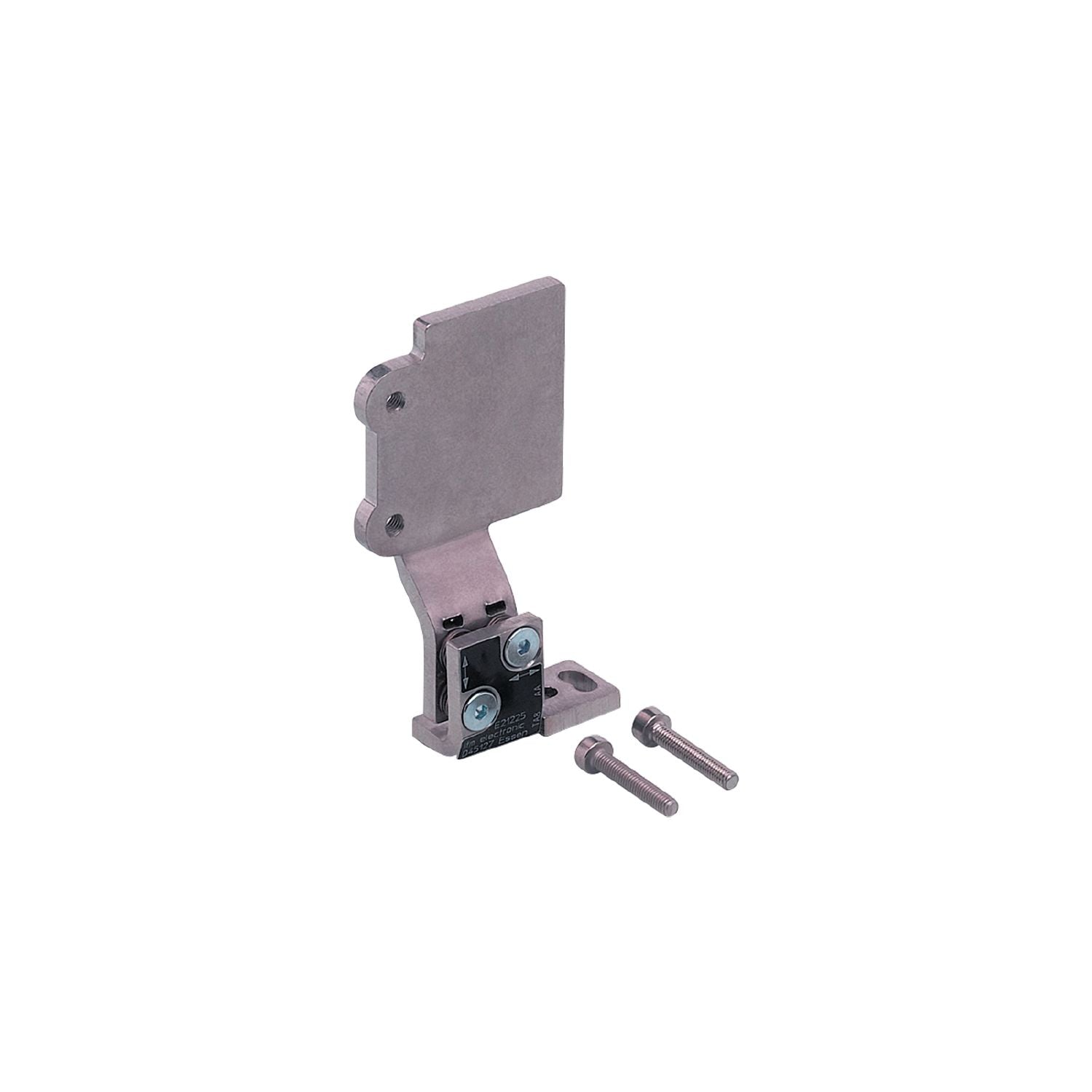

IFM E21225 - Fixture for mounting and fine adjustment of laser sensors SYSTEM COMPONENT OJ LASER

User-friendly alignment of the laser beam to a laser receiver or prismatic reflector.
High vibration resistance.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
For free-standing mounting

Design	for front lens

Weight [g]	61.5
Dimensions [mm]	62 x 34 x 16.6
Materials	stainless steel (1.4301 / 304)
Alignment range	fine adjustment in 2 axes ± 2°

Pack quantity	1 pcs.
