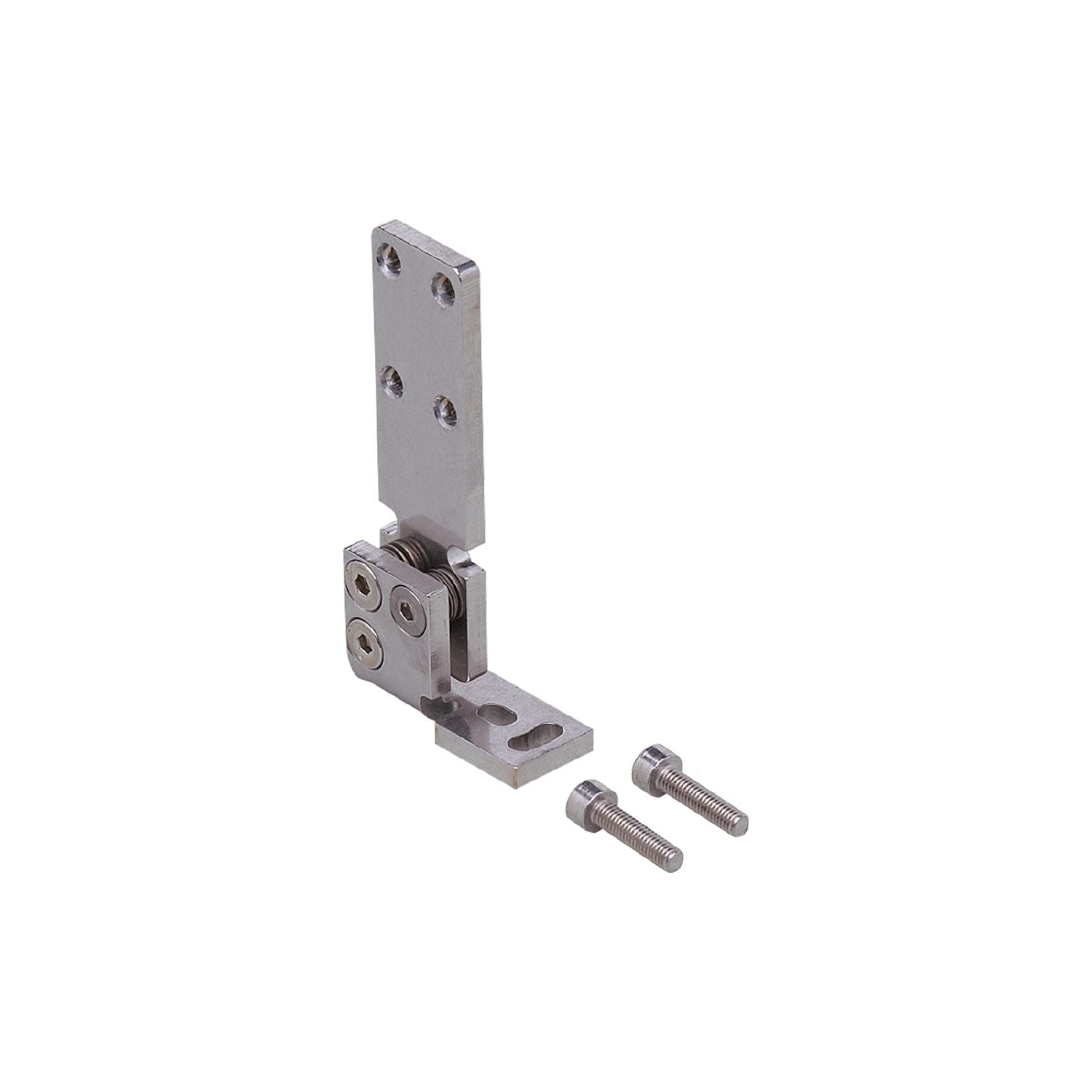

IFM E21239 - Mounting and fine adjustment bracket FIXTURE FOR FINE ADJUSTMENT

For an easy alignment of photoelectric sensors.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
For free-standing mounting.
Each sensor position possible due to free movement in all directions

Installation	free-standing mounting;(with fine adjustment)

Weight [g]	38.5
Type of mounting	free-standing
Dimensions [mm]	57.3 x 12 x 28
Materials	fixture: stainless steel; Spring: spring steel; screws: stainless steel

Accessories

Items supplied	screws: 2

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21239-00 — 27.08.2021 —
